HS-100C A Highly Integrated USB Audio

The HS-100C is a highly-integrated, crystal-free USB audio single chip solution optimized typically for USB headset, headphone, and dongle (wireless adapter enabled) applications. All necessary analog and digital modules were embedded in the HS-100C, including stereo DAC and earphone driver; mono AD.

HS-100C Features

* of the HS-100C are programmable with jumper pins or external EEPROM. Customers can customize unique USB VID / PID / Product String / Manufacture String and max / min / initial volume settings via an external EEPROM. In addition, the HS-100C supports HID compliant volume control pins such as Playback

HS-100C-C-Media.pdf

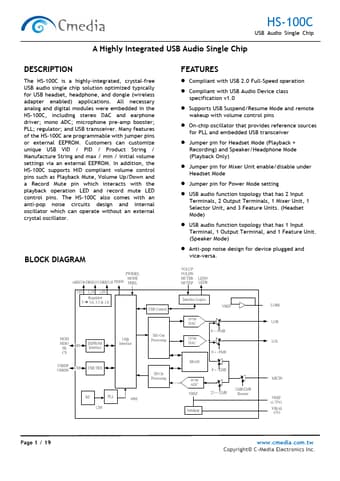

HS-100C Datasheet Preview — This datasheet PDF includes multiple part numbers: HS-100C, HS-100C-C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HS-100C, HS-100C-C

Manufacturer:

C-Media

File Size:

882.87 KB

Description:

A highly integrated usb audio.

Note:

This datasheet PDF includes multiple part numbers: HS-100C, HS-100C-C.
Please refer to the document for exact specifications by model.
