G65SC816 - CMOS 8/16-BIT MICROPROCESSOR

Datasheet Summary

Description

The G65SC816 is an advanced CMOS 16-bit microprocessor featuring total software compatibility with 8-bit NMOS and CMOS 6500 series microprocessors.

The G65SC816 provides 24 address lines for 16 Mbyte addressing, while providing both 8-bit and 16-bit operation.

Features

Advanced CMOS design for low power consumption and increased noise immunity Emulation mode for total software compatibility with 6502 designs Full 16-bit ALU, Accumulator, Stack Pointer, and Index Registers Direct register for zero page addressing 24 addressing modes (including 13 original 6502 modes) Wait for Interrupt (WAI) and Stop the Clock (STP) instructions for reduced power consumption and decreased interrupt latency 91 instructions with 255 opcodes Co-Processor (COP) in.

Datasheet Details

Part number	G65SC816
Manufacturer	CALIFORNIA MICRO DEVICES
File Size	113.72 KB
Description	CMOS 8/16-BIT MICROPROCESSOR
Datasheet	G65SC816 Datasheet

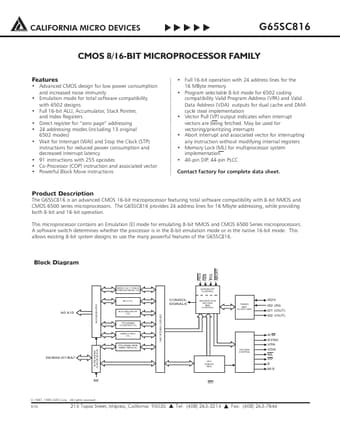

Additional preview pages of the G65SC816 datasheet.

📁 Similar Datasheet

G65SC816 - CMOS 8/16-BIT MICROPROCESSOR (California Micro Devices Corp)

G65SC802 - CMOS 8/16-BIT MICROPROCESSOR (California Micro Devices Corp)

G65SC02 - CMOS G65SC02-A 8-BIT MICROPROCESSOR (California Micro Devices Corp)

G65SC150 - CMOS COMMUNICATIONS TERMINAL UNIT (California Micro Devices Corp)

G65SC151 - ADV-CMOS COMMUNICATIONS TERMINAL UNIT (California Micro Devices Corp)

G65SC21 - CMOS Peripheral Interface Adapter (California Micro Devices Corp)

G65SC22 - CMOS VERSATILE INTERFACE ADAPTER (California Micro Devices Corp)

G65SC51 - CMOS ASYNCHRONOUS COMMUNICATIONS INTERFACE ADAPTER (California Micro Devices Corp)

G656 - Microprocessor Reset IC (Global Mixed-mode Technology)

G657 - Microprocessor Reset IC (Global Mixed-mode Technology)

Full PDF Text Transcription

Click to expand full text

CALIFORNIA MICRO DEVICES G65SC816 CMOS 8/16-BIT MICROPROCESSOR FAMILY Features Advanced CMOS design for low power consumption and increased noise immunity Emulation mode for total software compatibility with 6502 designs Full 16-bit ALU, Accumulator, Stack Pointer, and Index Registers Direct register for zero page addressing 24 addressing modes (including 13 original 6502 modes) Wait for Interrupt (WAI) and Stop the Clock (STP) instructions for reduced power consumption and decreased interrupt latency 91 instructions with 255 opcodes Co-Processor (COP) instruction and associated vector Powerful Block Move instructions Full 16-bit operation with 24 address lines for the 16 MByte memory Program selectable 8-bit mode for 6502 coding compatibility Valid Program Addr
