KPC105x3CD5B7xxxx SNUBBER CAPACITORS

50 11 27.5 - 11 27.5 - 14 27.5 - 17 25.5 8.5 17 25.5 - 17 25.5 11.5 18 - - 17 25.5 8.5 17 25.5 - 17 25.5 11.5 18 - - 28 27.0 11.5 28 39.0 - 18 - - 28 27.0 11.5 28 39.0 - 18 - - 28 27.0 11.5 28 39.0 - 28 27.0 11.5 28 39.0 - 28 27.0 11.5 28 39.0 - 28 27.0 11.5 2.

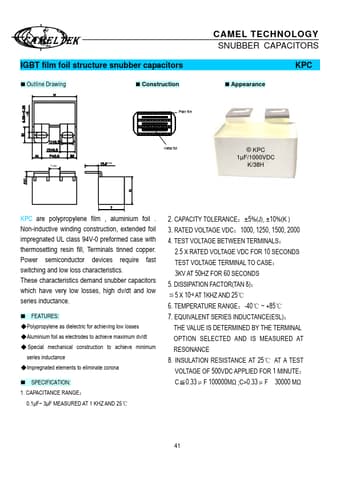

IGBT film foil structure snubber capacitors Outline Drawing Construction CAMEL TECHNOLOGY SNUBBER CAPACITORS KPC Appearance Plain film Y min max Metal foil © KPC 1µF/1000VDC K/38H KPC are polypropylene film , aluminium foil . Non-inductive winding construction, extended foil impregnated UL class 94V-0 preformed case with thermosetting resin fill, Terminals tinned copper. Power semiconductor devices require fast switching and low loss characteristics. These .

KPC105x3CD5B7xxxx Features

* Polypropylene as dielectric for achieving low losses

* Aluminium foil as electrodes to achieve maximum dv/dt

* Special mechanical construction to achieve minimum series inductance

* Impregnated elements to eliminate corona

* SPECIFICATION: 1. CAPACITANCE RANGE： 0.1µF~ 3µF MEA
