KWSFH50R12F4BM - 1200V 50A IGBT

This page provides the datasheet information for the KWSFH50R12F4BM, a member of the KWSFH50R12F4BM-CAS 1200V 50A IGBT family.

📥 Download Datasheet

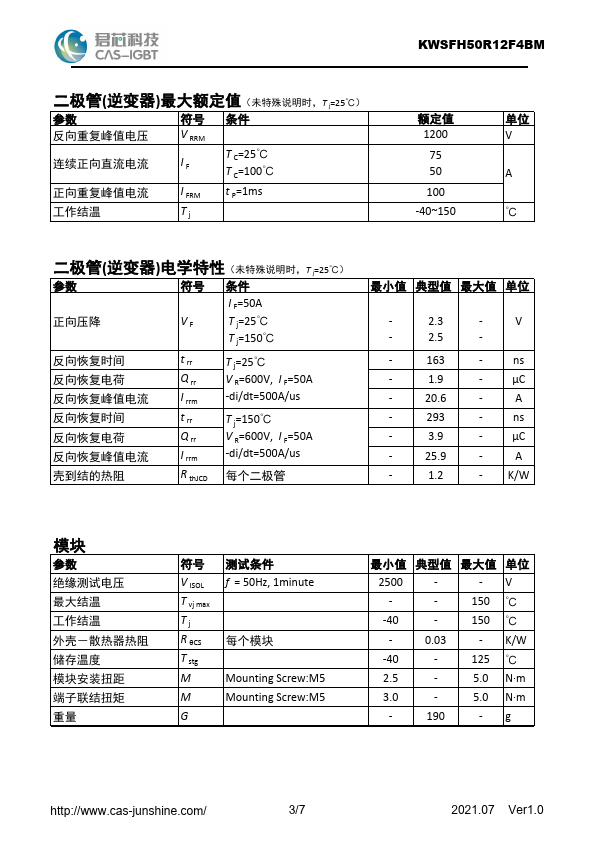

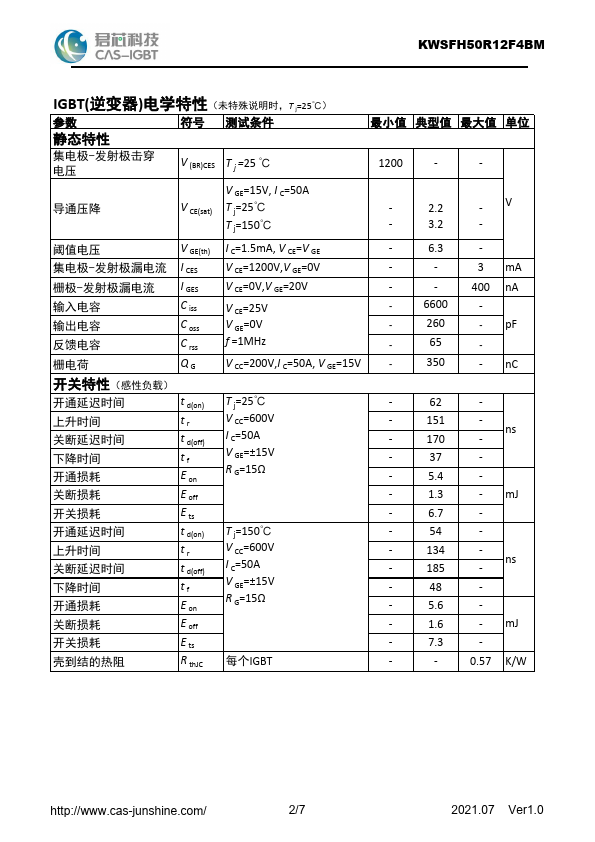

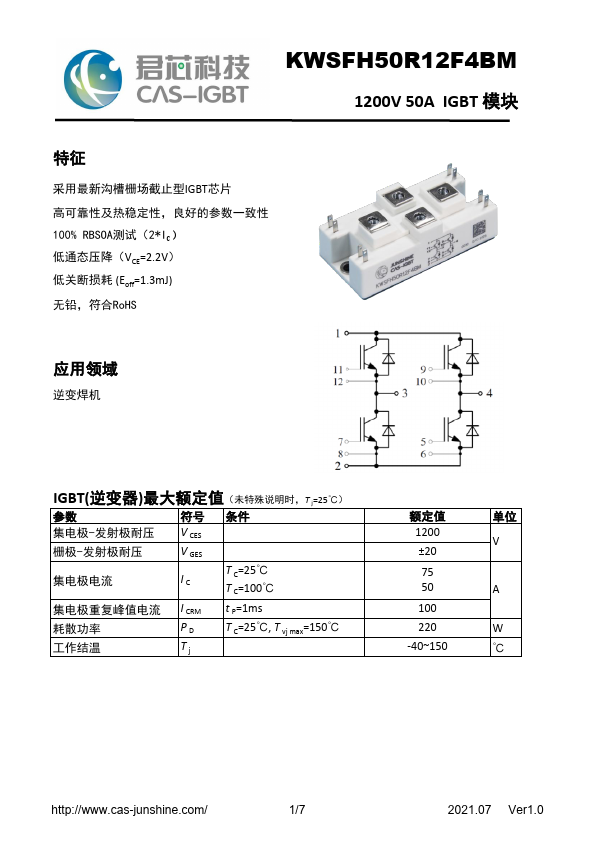

Datasheet preview – KWSFH50R12F4BM

Datasheet Details

Part number KWSFH50R12F4BM
Manufacturer CAS-IGBT
File Size 1.29 MB
Description 1200V 50A IGBT
Datasheet download datasheet KWSFH50R12F4BM Datasheet
