1N749, 1N746 Datasheet - CDIL

1N749 SILICON ZENER DIODES

SYMBOL VALUE UNIT Zener Voltage ZV 3.3 to 12 V D C Power Dissipation PD 400 mW Derating Above 50 deg C 3.2 mW/deg C Operating & Storage Junction Tj,Tstg -65 to +175 deg C Temperature Range ELECTRICAL CHARACTERISTICS (Ta=25 deg C Unless otherwise Specified , VF <1.5V @ 200mA Device.

1N746-CDIL.pdf

This datasheet PDF includes multiple part numbers: 1N749, 1N746. Please refer to the document for exact specifications by model.

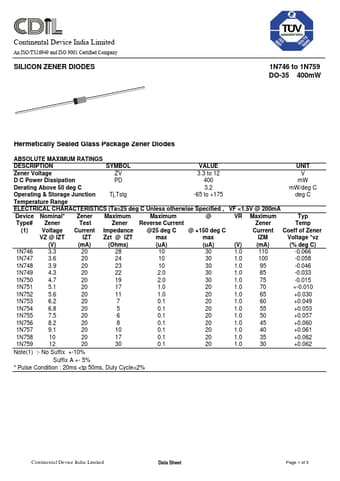

1N749 Datasheet Preview Page 2 1N749 Datasheet Preview Page 3

Datasheet Details

Part number:

1N749, 1N746

Manufacturer:

CDIL

File Size:

138.60 KB

Description:

Silicon zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N749, 1N746.
Please refer to the document for exact specifications by model.
