BC171B - (BC171 - BC174) NPN Silicon Planar Transistors

Product Overview

📥 Download Datasheet

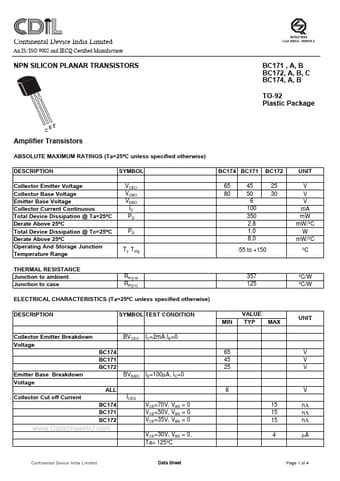

Datasheet preview – BC171B

Datasheet Details

Part number BC171B
Manufacturer CDIL
File Size 250.86 KB
Description (BC171 - BC174) NPN Silicon Planar Transistors
Datasheet download datasheet BC171B Datasheet
Additional preview pages of the BC171B datasheet.

Product details

Description

Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Continuous Total Device Dissipation @ Ta=25ºC Derate Above 25ºC Total Device Dissipation @ Tc=25ºC Derate Above 25ºC Operating And Storage Junction Temperature Range THERMAL RESISTANCE Junction to ambient Junction to case SYMBOL VCEO VCBO VEBO IC PD PD Tj, Tstg BC174 BC171 65 80 45 50 6 100 350 2.8 1.0 8.0 -55 to +150 BC172 25 30 UNIT V V V mA mW mW/ºC W mW/ºC ºC Rth(j-a) Rth(j-c) 357 125 ºC/W ºC/W ELECTR
