BD951, BD949 - NPN PLASTIC POWER TRANSISTOR

BD951 Description

Continental Device India Limited An IS/ISO 9002 and IECQ Certified Manufacturer TO-220 Plastic Package IS/ISO 9002 Lic# QSC/L- 000019.2 IS / IECQC 7.

BD951 Applications

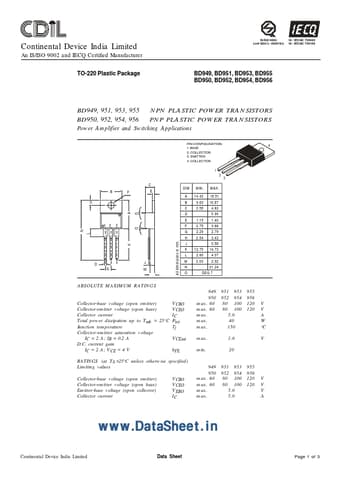

* PIN CONFIGURATION 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR 4 1 2 3 B H F C E DIM A B C D E F G H J K L M N O MIN . 14.42 9.63 3.56 MAX. N L O 1 2 3 D G J M 16.51 10.67 4.83 0.90 1.15 1.40 3.75 3.88 2.29 2.79 2.54 3.43 0.56 12.70 14.73 2.80 4.07 2.03 2.92 31.24 DEG 7 A O ABSOLU

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD951, BD949. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BD951, BD949
Manufacturer
CDIL
File Size
29.51 KB
Datasheet
BD949_CDIL.pdf
Description
NPN PLASTIC POWER TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: BD951, BD949.
Please refer to the document for exact specifications by model.
