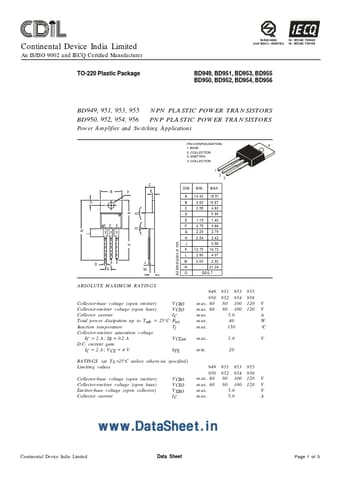

BD952
Continental Device India Limited
An IS/ISO 9002 and IECQ Certified Manufacturer TO-220 Plastic Package
IS/ISO 9002 Lic# QSC/L- 000019.2
IS / IECQC 700000 IS / IECQC 750100
BD949, BD951, BD953, BD955 BD950, BD952, BD954, BD956
BD949, 951, 953, 955 BD950, 952, 954, 956
NPN PLASTIC POWER TRANSISTORS PNP PLASTIC POWER TRANSISTORS
Power Amplifier and Switching Applications
PIN CONFIGURATION 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR
1 2 3
DIM A B C D E F G H J K L M N O
MIN . 14.42 9.63 3.56
MAX.
1 2
16.51 10.67 4.83 0.90 1.15 1.40 3.75 3.88 2.29 2.79 2.54 3.43 0.56 12.70 14.73 2.80 4.07 2.03 2.92 31.24 DEG 7
ABSOLUTE MAXIMUM RATINGS Collector-base voltage (open emitter) VCBO Collector-emitter voltage (open base) VCEO Collector current IC Total power dissipation up to Tmb = 25°C Ptot Junction temperature Tj Collector-emitter saturation voltage VCEsat IC = 2 A; IB = 0.2 A D.C. current gain h FE IC = 2 A; VCE = 4 V RATINGS (at TA=25°C...
