CSA1020 Datasheet - CDIL

COMPLEMENTARY SILICON PLANAR EPITAXIAL TRANSISTORS

CSA1020 General Description

Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Collector Power Dissipation Operating And Storage Junction Temperature Range SYMBOL VCEO VCBO VEBO IC PC Tj, Tstg VALUE 50 50 5 2 900 -55 to +150 UNIT V V V A mW ºC ELECTRICAL CHARACTERISTICS (Ta=25ºC unless spe.

CSA1020 Datasheet (127.16 KB)

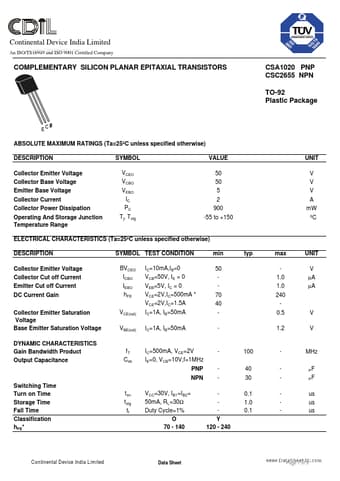

CSA1020 Datasheet Preview — Preview of CSA1020 PDF

Datasheet Details

Part number:

CSA1020

Manufacturer:

CDIL

File Size:

127.16 KB

Description:

Complementary silicon planar epitaxial transistors.
Continental Device India Limited www.DataSheet4U.com An ISO/TS16949 and ISO 9001 Certified Company COMPLEMENTARY SILICON PLANAR EPITAXIAL TRANSISTORS.
