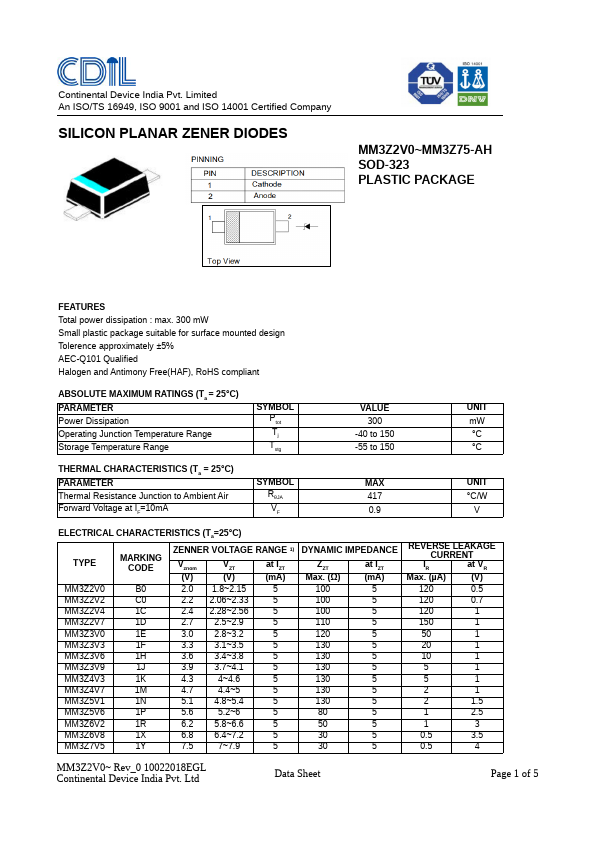

MM3Z27, MM3Z2V0 SILICON PLANAR ZENER DIODES

CDIL

Description

Continental Device India Pvt.Limited An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company SILICON PLANAR ZENER DIODES MM3Z2V0~MM3Z75-AH SOD-323.

📥 Download Datasheet

MM3Z27 Datasheet Preview — This datasheet PDF includes multiple part numbers: MM3Z27, MM3Z2V0. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: MM3Z27, MM3Z2V0
Manufacturer: CDIL
File Size: 1.80 MB
Datasheet: MM3Z2V0-CDIL.pdf
Description: SILICON PLANAR ZENER DIODES
Note: This datasheet PDF includes multiple part numbers: MM3Z27, MM3Z2V0.
Please refer to the document for exact specifications by model.

Features

* Total power dissipation : max. 300 mW Small plastic package suitable for surface mounted design Tolerence approximately ±5% AEC-Q101 Qualified Halogen and Antimony Free(HAF), RoHS compliant ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) PARAMETER Power Dissipation Operating Junction Temperature Range Storage
