MMSZ24, MMSZ4V7 Datasheet - CDIL

MMSZ24 ZENER VOLTAGE REGULATOR DIODES

Power Dissipation on FR-5 Board at TL=75ºC (Note 1) Derated Above 75ºC Thermal Resistance, Junction to Ambient (Note 2) Thermal Resistance, Junction to Lead (Note 2) Operating and Storage Junction Temperature Range SYMBOL PD Rth (j-a) Rth (j-L) Tj, Tstg VALUE 500 6.7 340 150 - 55 to +150 UNIT mW .

MMSZ4V7-CDIL.pdf

This datasheet PDF includes multiple part numbers: MMSZ24, MMSZ4V7. Please refer to the document for exact specifications by model.

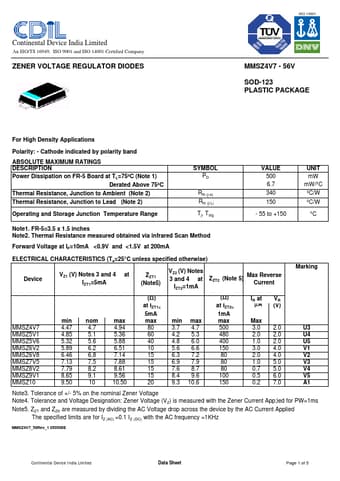

MMSZ24 Datasheet Preview Page 2 MMSZ24 Datasheet Preview Page 3

Datasheet Details

Part number:

MMSZ24, MMSZ4V7

Manufacturer:

CDIL

File Size:

304.30 KB

Description:

Zener voltage regulator diodes.

Note:

This datasheet PDF includes multiple part numbers: MMSZ24, MMSZ4V7.
Please refer to the document for exact specifications by model.
