MPS750, MPS650 - PNP SILICON PLANAR AMPLIFIER TRANSISTORS

CDIL

The MPS750 by CDIL is a PNP SILICON PLANAR AMPLIFIER TRANSISTORS. Below is the official datasheet preview.

📥 Download Datasheet

MPS750 PNP SILICON PLANAR AMPLIFIER TRANSISTORS by CDIL - Datasheet Preview — Official preview page of the **MPS750** PNP SILICON PLANAR AMPLIFIER TRANSISTORS datasheet (CDIL).

Datasheet Details

Part number	MPS750, MPS650
Manufacturer	CDIL
File Size	84.26 KB
Description	PNP SILICON PLANAR AMPLIFIER TRANSISTORS
Datasheet	MPS650-CDIL.pdf
Note	This datasheet PDF includes multiple part numbers: MPS750, MPS650. Please refer to the document for exact specifications by model.

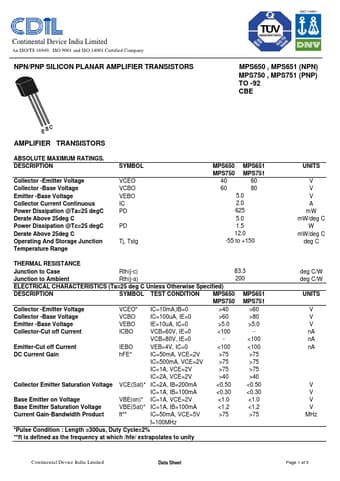

Additional preview pages of the MPS750 datasheet.

MPS750 Product details

Description

Collector -Emitter Voltage Collector -Base Voltage Emitter -Base Voltage Collector Current Continuous Power Dissipation @Ta=25 degC Derate Above 25deg C Power Dissipation @Tc=25 degC Derate Above 25deg C Operating And Storage Junction Temperature Range SYMBOL VCEO VCBO VEBO IC PD PD Tj, Tstg MPS650 MPS651 MPS750 MPS751 40 60 60 80 5.0 2.0 625 5.0 1.5 12.0 -55 to +150 THERMAL RESISTANCE Junction to Case Rth(j-c) 83.3 Junction to Ambient Rth(j-a) 200 ELECTRICAL CHARACTERISTICS (Ta=25 deg
