W10M Datasheet - CDIL

W10M GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIERS

SYMBOL W005M W01M W02M W04M W06M W08M W10M UNIT Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage Maximum Average Forward Rectified Current at Ta=25ºC Peak Forward Surge Current, 8.3ms sin.

W10M Datasheet (125.68 KB)

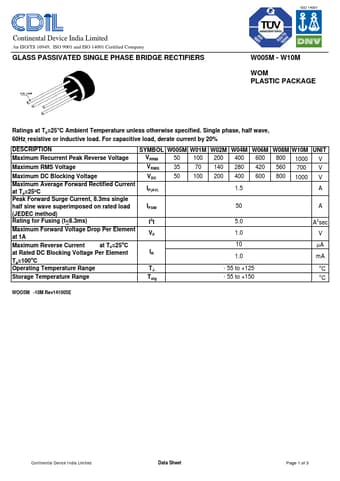

Preview of W10M PDF
W10M Datasheet Preview Page 2 W10M Datasheet Preview Page 3

Datasheet Details

Part number:

W10M

Manufacturer:

CDIL

File Size:

125.68 KB

Description:

Glass passivated single phase bridge rectifiers.
