CKRF3509MM34 Datasheet, Amplifier, CDK

CKRF3509MM34 Features

  • Amplifier
  • Low noise figure and high associated gain NF=0.40dB Typ., Ga=17.5dB Typ. @Vdd=3.0V, Idd=15mA, f=1.575GHz Description:
  • Low Noise and High Gain
  • On chip Bia

PDF File Details

Part number:

CKRF3509MM34

Manufacturer:

CDK

File Size:

575.05kb

Download:

📄 Datasheet

Description:

L to s band low noise amplifier.

  • Low Noise and High Gain
  • On chip Bias supply circuit
  • On chip ESD protection diode Applications:
  • <

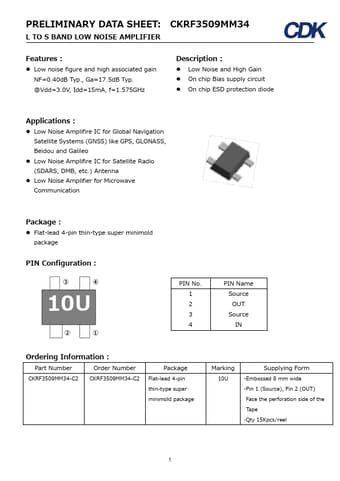

    Datasheet Preview: CKRF3509MM34 📥 Download PDF (575.05kb)
    Page 2 of CKRF3509MM34 Page 3 of CKRF3509MM34

    CKRF3509MM34 Application

    • Applications
    • Low Noise Amplifire IC for Global Navigation Satellite Systems (GNSS) like GPS, GLONASS, Beidou and Galileo
    • Low No
