NX8312UD - InGaAsP MQW DFB

Datasheet Summary

Description

NEC's NX8312UD is a 1 310 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode TOSA (transmitter optical sub-assembly) with InGaAs monitor PIN-PD in a receptacle type package designed for SFF/SFP transceiver with LC duplex receptacle.

📥 Download Datasheet

Datasheet preview – NX8312UD

Datasheet Details

Part number NX8312UD
Manufacturer CEL
File Size 354.93 KB
Description InGaAsP MQW DFB
Datasheet download datasheet NX8312UD Datasheet
Additional preview pages of the NX8312UD datasheet.

📁 Similar Datasheet

  • NX8346TB - LASER DIODE (Renesas)
  • NX8346TS - LASER DIODE (Renesas)
  • NX8045GB - SURFACE MOUNT TYPE CRYSTAL UNITS (ETC)
  • NX8045GB - Crystal Units (NIHON DEMPA KOGYO)
  • NX8045GD - Crystal Units (NIHON DEMPA KOGYO)
  • NX8220 - (NX8220 / NX8230) Quick Specs (HP)
  • NX8230 - (NX8220 / NX8230) Quick Specs (HP)
  • NX8501 - LASER DIODE (NEC)
  • NX8503BG - LASER DIODE (NEC)
  • NX8503BG-CC - NECs 1550 nm InGaAsP MQW DFB LASER DIODE (NEC)
Other Datasheets by CEL

Full PDF Text Transcription

Click to expand full text

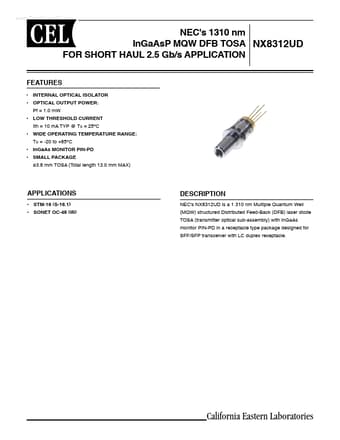

www.DataSheet4U.com NEC's 1310 nm InGaAsP MQW DFB TOSA NX8312UD FOR SHORT HAUL 2.5 Gb/s APPLICATION FEATURES • INTERNAL OPTICAL ISOLATOR • OPTICAL OUTPUT POWER: Pf = 1.0 mW • LOW THRESHOLD CURRENT Ith = 10 mA TYP @ TC = 25°C • WIDE OPERATING TEMPERATURE RANGE: TC = -20 to +85°C • InGaAs MONITOR PIN-PD • SMALL PACKAGE ø3.8 mm TOSA (Total length 13.0 mm MAX) APPLICATIONS • STM-16 (S-16.1) • SONET OC-48 (IR) DESCRIPTION NEC's NX8312UD is a 1 310 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode TOSA (transmitter optical sub-assembly) with InGaAs monitor PIN-PD in a receptacle type package designed for SFF/SFP transceiver with LC duplex receptacle. California Eastern Laboratories NX8312UD PACKAGE DIMENSIONS (UNIT: mm) φ 4.75±0.1 φ 3.4±0.03 φ 2.92+0.05 -0.
