ZICM357P2 - Transceiver Based Module

Datasheet Summary

Description

D stack.

memory.

Features

  • High RF Performance: Up to 120 dB RF Link Budget RX Sensitivity: -100 dBm RF TX Power: +20 dBm.
  • Data Rate: 250 kbps.
  • Small Footprint: 1” x 1.41” (25.4 mm x 35.9 mm).
  • Advanced Power Management Scheme with Deep Sleep Mode.
  • Antenna Options: 1) Integrated PCB Trace Antenna or 2) U. FL Connector for External Antenna.
  • 16 RF Channels.
  • AES Encryption.
  • FCC, CE and IC Certifications.
  • ROHS Compliant APPL.

📥 Download Datasheet

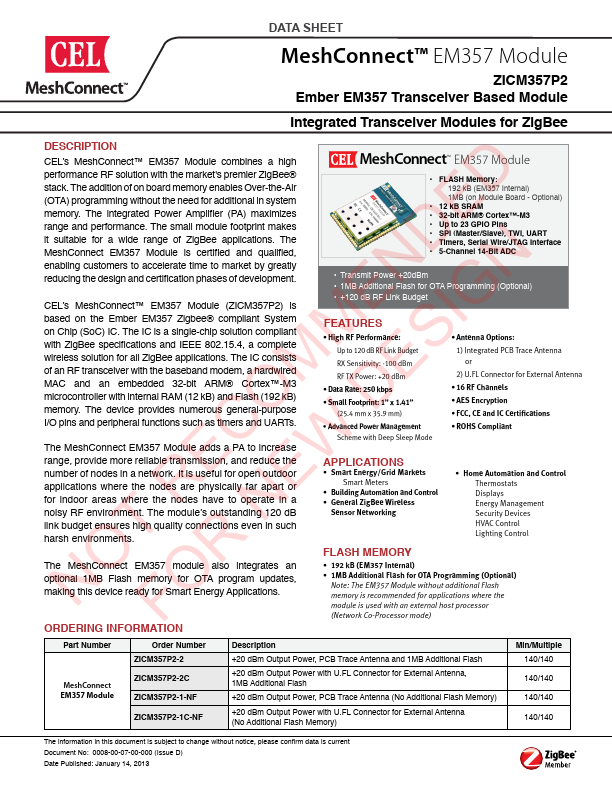

Datasheet preview – ZICM357P2

Datasheet Details

Part number ZICM357P2
Manufacturer CEL
File Size 1.20 MB
Description Transceiver Based Module
Datasheet download datasheet ZICM357P2 Datasheet

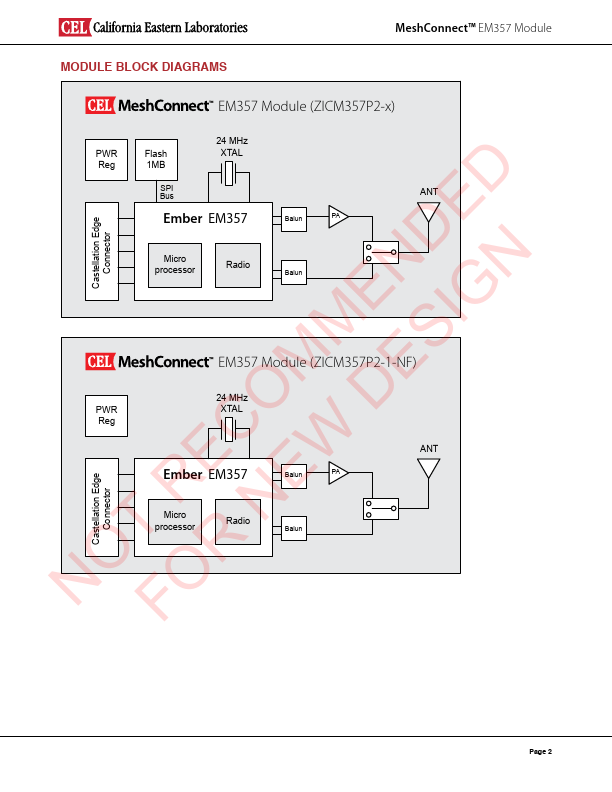

Additional preview pages of the ZICM357P2 datasheet.

📁 Similar Datasheet

  • ZIC2410 - Single-chip 2.4GHz RF Transceiver (California Eastern Laboratories)
Other Datasheets by CEL

Full PDF Text Transcription

Click to expand full text
DATA SHEET MeshConnect™ EM357 Module ZICM357P2 Ember EM357 Transceiver Based Module Integrated Transceiver Modules for ZigBee DESCRIPTION MeshConnect CEL’s MeshConnect™ EM357 Module combines a high performance RF solution with the market's premier ZigBee® D stack. The addition of on board memory enables Over-the-Air (OTA) programming without the need for additional in system memory. The integrated Power Amplifier (PA) maximizes E range and performance. The small module footprint makes it suitable for a wide range of ZigBee applications. The D MeshConnect EM357 Module is certified and qualified, enabling customers to accelerate time to market by greatly N N reducing the design and certification phases of development.
