BAV99W-WS - DUAL SERIES SWITCHING DIODE

This page provides the datasheet information for the BAV99W-WS, a member of the BAV99W-WS-CHENG DUAL SERIES SWITCHING DIODE family.

Datasheet Summary

Features

Pb.
Free Package May be Available. The G.
Suffix Denotes a Pb.
Free Lead Finish The BAV99W is a smaller package, equivalent to the BAV99 Suggested.

CHENG-YI

📥 Download Datasheet

Datasheet Details

Part number	BAV99W-WS
Manufacturer	CHENG-YI
File Size	261.72 KB
Description	DUAL SERIES SWITCHING DIODE
Datasheet	BAV99W-WS Datasheet
Additional preview pages of the BAV99W-WS datasheet.

📁 Similar Datasheet

BAV99W-AU - SURFACE MOUNT SWITCHING DIODES (PAN JIT)
BAV99W - FAST SWITCHING DIODE (SMC Diode)
BAV99W - SURFACE MOUNT FAST SWITCHING DIODE (Sunmate)
BAV99W - Switching Diodes (Toshiba)
BAV99W - Switching Diode Array (Taiwan Semiconductor)
BAV99W - Silicon Switching Diode (Infineon)
BAV99W - SWITCHING DIODE (Rectron)
BAV99W - Switching Diode (GOODARK)
BAV99W - SURFACE MOUNT SWITCHING DIODES (PANJIT)
BAV99W - Surface Mount Small Signal Double-Diodes (Diotec)

Other Datasheets by CHENG-YI

Full PDF Text Transcription

Click to expand full text

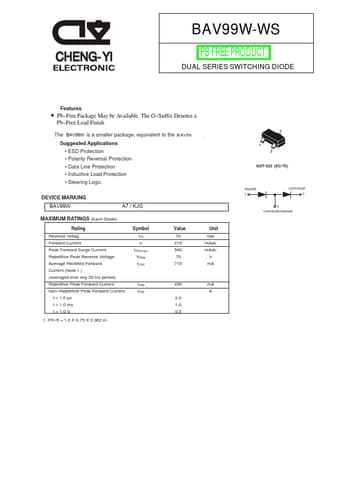

BAV99W-WS PB FREE PRODUCT DUAL SERIES SWITCHING DIODE Features • Pb−Free Package May be Available. The G−Suffix Denotes a Pb−Free Lead Finish The BAV99W is a smaller package, equivalent to the BAV99 Suggested Applications • ESD Protection • Polarity Reversal Protection • Data Line Protection • Inductive Load Protection • Steering Logic . DEVICE MARKING BAV99W A7 / KJG MAXIMUM RATINGS (Each Diode) Rating Reverse Voltag Forward Current Peak Forward Surge Current Repetitive Peak Reverse Voltage Average Rectified Forward Current (Note 1.) (averaged over any 20 ms period) Repetitive Peak Forward Current Non–Repetitive Peak Forward Current t = 1.0 µs t = 1.0 ms t = 1.0 S 1. FR–5 = 1.0 × 0.75 × 0.062 in. Symbol VR IF IFM(surge) VRRM IF(AV) IFRM IFSM Value 70 215 500 70 715 450 2.0 1.0 0.
