GBP2005 - SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS

This page provides the datasheet information for the GBP2005, a member of the GBP2005-CHENG SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS family.

Datasheet Summary

Features

  • Surge overload rating - 50 amperes peak Ideal for printed circuit board The plastic material has Underwriters Laboratory Flammability Classification 94V-0 Mounting Position: Any.

📥 Download Datasheet

Datasheet preview – GBP2005

Datasheet Details

Part number GBP2005
Manufacturer CHENG-YI
File Size 175.32 KB
Description SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIERS
Datasheet download datasheet GBP2005 Datasheet

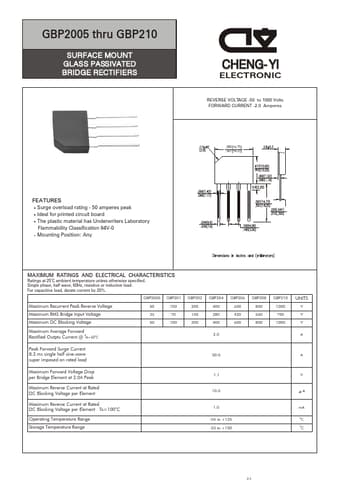

Additional preview pages of the GBP2005 datasheet.
