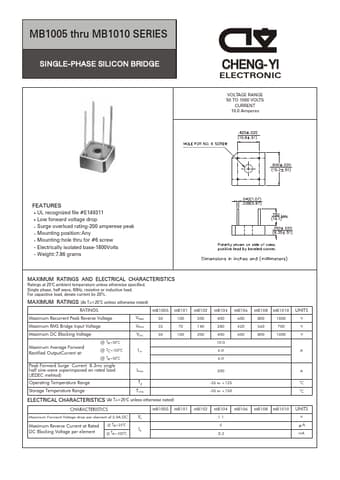

MB1005
MB1005 is SINGLE-PHASE SILICON BRIDGE manufactured by CHENG-YI.
- Part of the MB1005-CHENG comparator family.
- Part of the MB1005-CHENG comparator family.
FEATURES
UL recognized file #E149311 Low forward voltage drop Surge overload rating-200 amperese peak Mounting position:Any Mounting:hole thru for #6 screw Electrically isolated base-1800Volts Weight:7.86 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 250C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
MAXIMUM RATINGS (At TA=250C unless otherwise noted)
RATINGS
MB1005 MB101
Maximum Recurrent Peak Reverse Voltage
VRRM 50 100
Maximum RMS Bridge Input Voltage
VRMS
Maximum DC Blocking Voltage
VDC 50 100
Maximum Average Forward Rectified Output Current at:
@ TA=500C @ TC=1000C @ TA=500C
Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load (JEDEC mehtod)
Operating Temperature Range
Storage...
