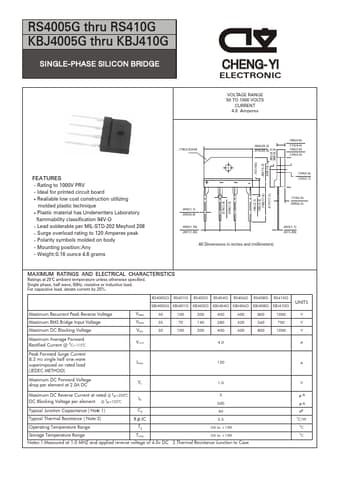

RS4005G
FEATURES
Rating to 1000V PRV Ideal for printed circuit board Realiable low cost construction utilizing molded plastic technique Plastic material has Underwriters Laboratory flammability classification 94V-O Lead solderable per MIL-STD-202 Meyhod 208 Surge overload rating to 120 Amperes peak Polarity symbols molded on body Mounting position:Any Weight:0.16 ounce 4.6 grams
+~~-
.134(3.4) .122(3.1)
.145(3.7) .130(3.3)
.700(17.8) .677(17.2)
.043(1.1) .035(0.9)
.075(1.9) .060(1.5)
.114(2.9) .098(2.5)
.030(7.70) .287(7.30)
.043(1.1) .031(.80)
All Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 250C ambient temperature unless otherwise specified.
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Maximum Recurrent Peak Reverse Voltage Maximum RMS Bridge Input Voltage Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current @ TC=1150C
VRRM VRMS VDC
RS4005G RS401G...
