SR2060C, SR2020C-CHENG SCHOTTKY BARRIER RECTIFIER

SR2060C Description

SR2020C thru SR20200 PB FREE PRODUCT SCHOTTKY BARRIER RECTIFIER .

SR2060C Features

* Low switching noise
* Low forward voltage drop
* High current capability
* High reliability
* High surge capability
* Pb free plating 99% Sn above .108 (2.75) .413(10.5) .374(9.5) .153(3.90) .146(3.70) .270(6.90) .230(5.80) .187(4.70) .148(3.80) .053(1.30) .047(1.20) .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR2060C, SR2020C-CHENG. Please refer to the document for exact specifications by model.

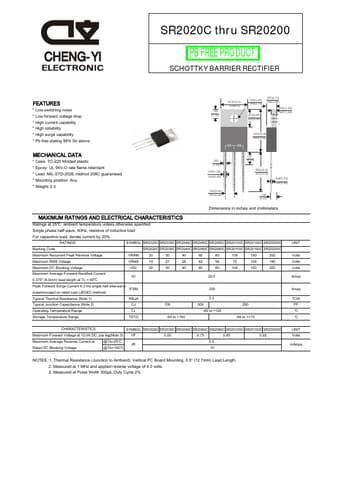

datasheet Preview Page 2

Datasheet Details

Part number
SR2060C, SR2020C-CHENG
Manufacturer
CHENG-YI
File Size
399.82 KB
Datasheet
SR2020C-CHENG-YI.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SR2060C, SR2020C-CHENG.
Please refer to the document for exact specifications by model.
