CMM31, CMM11 Datasheet - CHILISIN

CMM31 - SMD Common Mode Choke

SMD Common Mode Choke - CMM Series CMM Series For USB 2.0, 3.0, IEEE1394b, LVDS Applications Based on Chilisin’s technical expertise, we have introduced a full series of common mode choke.

They are designed for excellent noise attenuation with a compact size for wide applications such as USB line for personal computers and peripheral, IEEE 1394 line for personal computers, DVC, STB and LVDS, panel line for liquid display panels, etc.

We welcome you to contact us for requirement of our standard

CMM31 Features

* Applications l Miniature SMD type common mode filter for fully automated assembly. l USB line for personal computers and peripheral, l Wide Impedance range (30O ~ 2200O) for noise suppression. l IEEE 1394 line for personal computers, DVC, STB. l Excellent Solderability. l LVDS, panel line for

CMM11-CHILISIN.pdf

This datasheet PDF includes multiple part numbers: CMM31, CMM11. Please refer to the document for exact specifications by model.

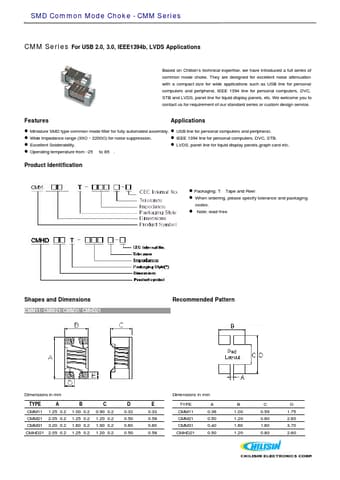

CMM31 Datasheet Preview Page 2

Datasheet Details

Part number:

CMM31, CMM11

Manufacturer:

CHILISIN

File Size:

83.78 KB

Description:

Smd common mode choke.

Note:

This datasheet PDF includes multiple part numbers: CMM31, CMM11.
Please refer to the document for exact specifications by model.
