M236HGJ-L21 Datasheet - CHIMEI Innolux

M236HGJ-L21 TFT LCD

5 1.1 OVERVIEW 5 1.2 GENERAL SPECIFICATIONS 5 2. MECHANICAL SPECIFICATIONS 5 3. ABSOLUTE MAXIMUM RATINGS 5 3.1 ABSOLUTE RATINGS OF ENVIRONMENT 5 3.2 ELECTRICAL ABSOLUTE RATINGS 6 3.2.1 TFT LCD MODULE 6 3.2.2 BACKLIGHT UNIT 6 4. ELECTRICAL SPECIFICATIONS 7 4.1 FUNCTION BLOCK DIAGRAM 7 4.2. IN.

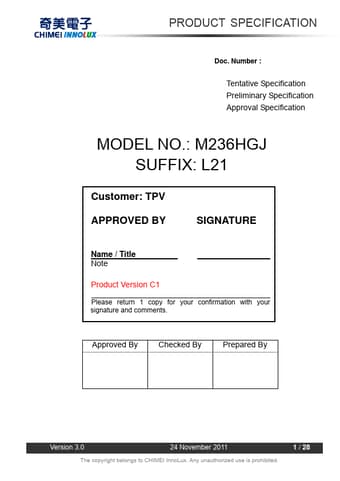

PRODUCT SPECIFICATION Doc. Number : Tentative Specification Preliminary Specification Approval Specification MODEL NO.: M236HGJ SUFFIX: L21 Customer: TPV APPROVED BY SIGNATURE Name / Title Note Product Version C1 Please return 1 copy for your confirmation with your signature and comments. Approved By Checked By Prepared By Version 3.0 24 November 2011 The copyright belongs to CHIMEI InnoLux. Any unauthorized use is prohibited. 1 / 28 PRODUCT SPECIFICATION CONTENTS 1. GENERAL DESCRI.
