79L08

Three-terminal negative voltage regulator

79L08 Features

* Maximum output current IOM: 0.1 A

* Output voltage VO: -8 V

* Continuous total dissipation PD: 0.5 W 1. GND 2. IN 3. OUT ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies unless otherwise specified) Parameter Symbol Value Unit Input Voltage Vl -30 V Operating Junc

79L08 Datasheet (271.85 KB)

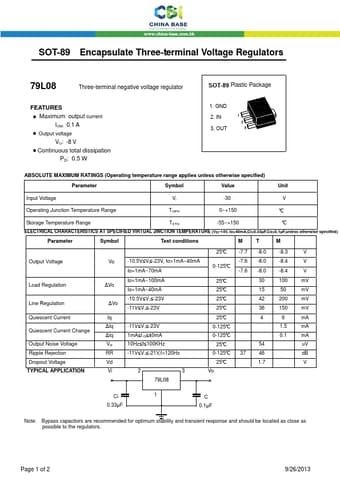

Preview of 79L08 PDF

Datasheet Details

Part number:

79L08

Manufacturer:

CHINA BASE

File Size:

271.85 KB

Description:

Three-terminal negative voltage regulator.
