CH1115 Datasheet - CHIP WEALTH

128 X 64 Dot Matrix OLED/PLED Segment/Common Driver

CH1115 Features

* Support maximum 128 X 64 dot matrix panel

* Embedded 128 X 64 bits SRAM

* Operating voltage: - Logic voltage supply: VDD1 = 1.65V - 3.5V - DC-DC voltage supply: VDD2 = 3.0V - 4.75V - OLED Operating voltage supply: External VPP supply = 6.4V - 14.0V Internal VPP generator = 7.4V

CH1115 General Description

CH1115 is a single-chip CMOS OLED/PLED driver with controller for organic/polymer light emitting diode dot-matrix graphic display system. CH1115 consists of 128 segments, 64 commons that can support a maximum display resolution of 128 X 64. It is designed for Common Cathode type OLED panel. CH1115 e.

CH1115 Datasheet (2.65 MB)

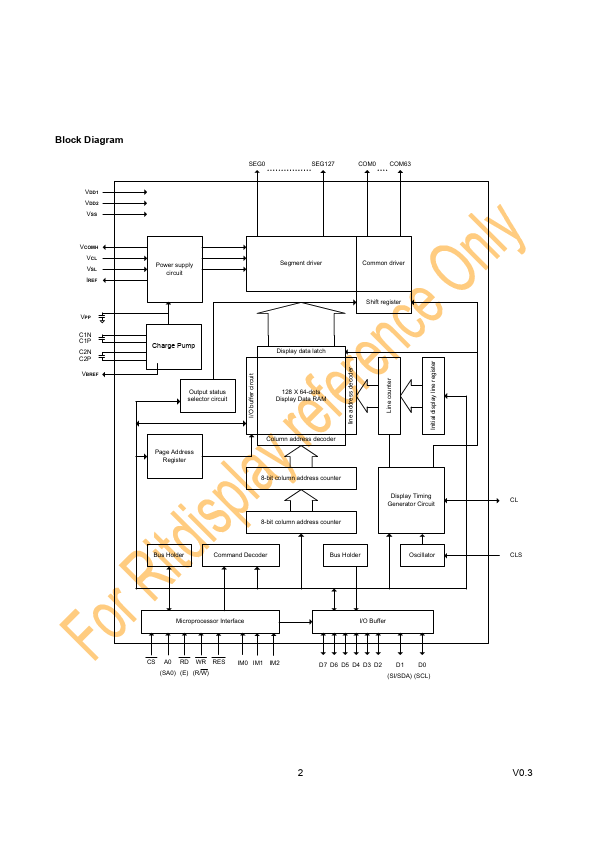

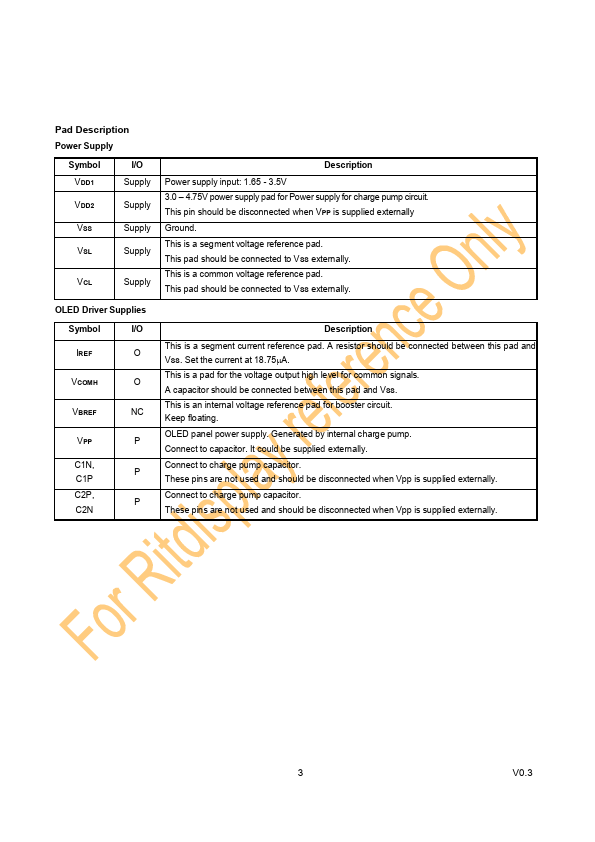

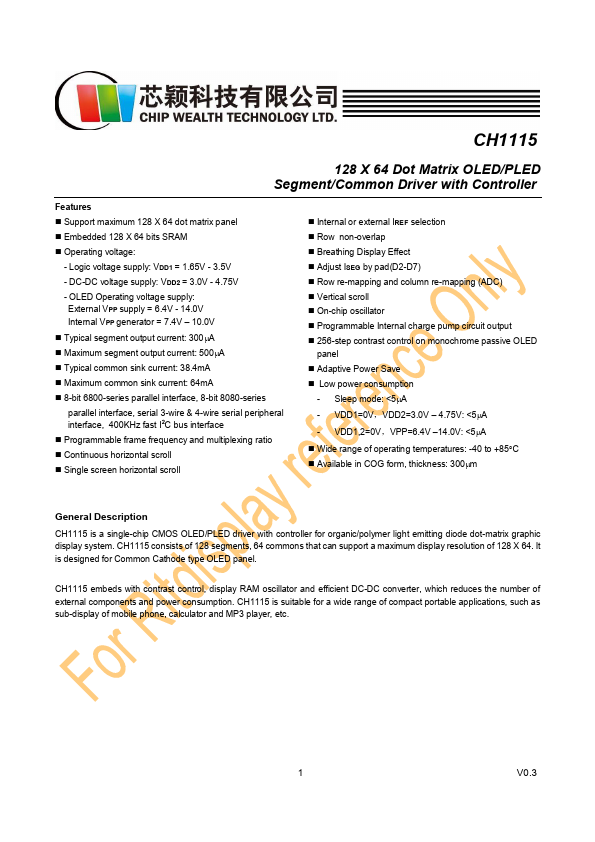

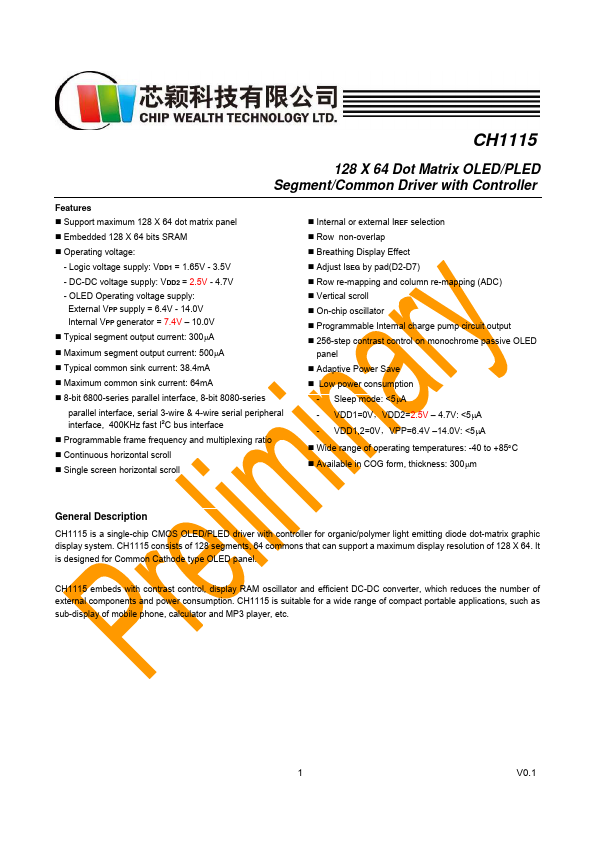

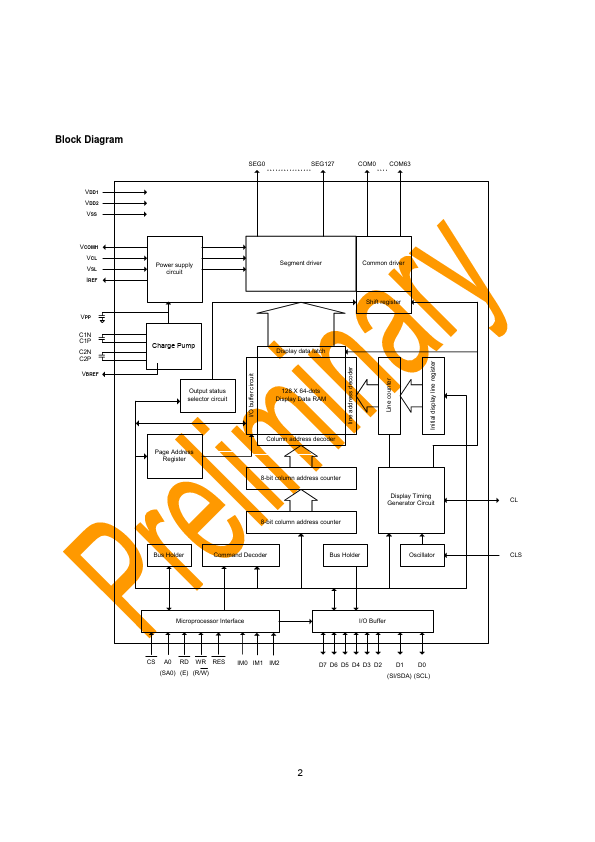

CH1115 Datasheet Preview — Preview of CH1115 PDF

Datasheet Details

Part number:

CH1115

Manufacturer:

CHIP WEALTH

File Size:

2.65 MB

Description:

128 x 64 dot matrix oled/pled segment/common driver.
