CP2130 - High Efficiency 1x/1.5x Fractional Charge Pump

CP2130 Description

Product Brief CP2130 DC/DC Series High Efficiency 1X/1.5X Fractional Charge Pump for White LED www.datasheet4u.com OVERVIEW The CP2130 is optimized.

CP2130 Features

* Drives up to 5 LEDs at 30 mA Each
* Regulated Output Current With 0.5% Matching Over Temperature
* LED Brightness Control Through PWM Control Signal（0Hz～50KHz）
* Low Input Ripple and Low EMI
* Over-current and Over-temperature Protected
* Less than 0.1μA Quiescent Current I

CP2130 Applications

* The device provides a constant current, set by an external resistor, for each LED. The supply voltage ranges from 2.7 V to 5.5 V and is ideally suited for all applications powered by a single LI-Ion battery cell or three to four NiCd, NiMH, or Alkaline 3mm
* 3mm QFN 16L -40℃～85℃ battery cells. T

📥 Download Datasheet

Preview of CP2130 PDF

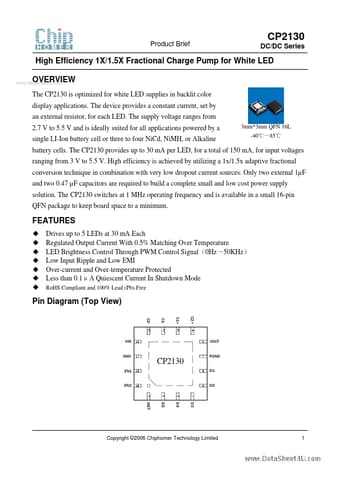

datasheet Preview Page 2

Datasheet Details

Part number
CP2130
Manufacturer
CHIP
File Size
98.50 KB
Datasheet
CP2130_CHIP.pdf
Description
High Efficiency 1x/1.5x Fractional Charge Pump
