CP2528 - (CP2528 / CP2532) 8 channels Capacitive Touch Detection Device

Datasheet Summary

Description

The CP2532/CP2528 is 12/8 channels capacitive touch panel controller, used for scroll, navigation and selection detection.

Features

  • Up to 12/8 channels.
  • Fast touch response time:18~20 ms.
  • Backlight driver supported, 2 backlight modes: Full backlighting and sensor indication backlighting.
  • Buzzer driver supported.
  • Slide detection supported.
  • High capacitance resolution(0.02pF @ 100uA charge current), measurement range is 0~80pF.
  • Support SPI/I2C/GPIO, touch state can be read via these interface.
  • Programmable interrupt, low active.
  • In-built LDO for high PSRR.
  • Auto compensation the drift.

📥 Download Datasheet

Datasheet preview – CP2528

Datasheet Details

Part number CP2528
Manufacturer CHIP
File Size 178.78 KB
Description (CP2528 / CP2532) 8 channels Capacitive Touch Detection Device
Datasheet download datasheet CP2528 Datasheet
Additional preview pages of the CP2528 datasheet.

📁 Similar Datasheet

  • CP2500 - HIGH CURRENT SILICON BRIDGE RECTIFIERS(VOLTAGE - 50 to 800 Volts CURRENT - 15 to 35 Amperes) (Pan Jit International Inc.)
  • CP2501 - HIGH CURRENT SILICON BRIDGE RECTIFIERS(VOLTAGE - 50 to 800 Volts CURRENT - 15 to 35 Amperes) (Pan Jit International Inc.)
  • CP2502 - HIGH CURRENT SILICON BRIDGE RECTIFIERS(VOLTAGE - 50 to 800 Volts CURRENT - 15 to 35 Amperes) (Pan Jit International Inc.)
  • CP2504 - HIGH CURRENT SILICON BRIDGE RECTIFIERS (Pan Jit International Inc.)
  • CP2506 - HIGH CURRENT SILICON BRIDGE RECTIFIERS (Pan Jit International Inc.)
  • CP2508 - HIGH CURRENT SILICON BRIDGE RECTIFIERS(VOLTAGE - 50 to 800 Volts CURRENT - 15 to 35 Amperes) (Pan Jit International Inc.)
  • CP2540-7R - 120...195 Watt DC-DC Converters (Power-One)
  • CP25TD1-24A - IGBT MODULE (MITSUBISHI)
  • CP25TD1-24A - DIP-CIB (Powerex)
  • CP2000 - TRANSHIELLD CP2000 SERIES (ETC)
Other Datasheets by CHIP
  • CP2508 - 8 channels Capacitive Touch Sensor Controller
  • CP2532 - (CP2528 / CP2532) 8 channels Capacitive Touch Detection Device
  • CP2007 - 4-Wire Touch Screen Controller
  • CP2056 - 4-Wire Touch Screen Controller
  • CP2122 - Step-Up White-LED Driver
  • CP2123 - Step-Up White-LED Driver Brief
  • CP2123 - Step-Up White-LED Driver
  • CP2124 - Step-Up White-LED Driver Brief

Full PDF Text Transcription

Click to expand full text

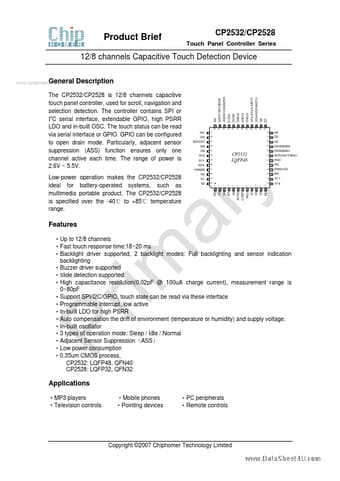

Product Brief CP2532/CP2528 Touch Panel Controller Series 12/8 channels Capacitive Touch Detection Device General www.datasheet4u.com Description NC ADD1/SDI/SEN0 ADD0/CSN/SEN1 DVSS DVSS DVDD DVDD DVDD SCL/SCLK/MOT1 SDA/SDO/MOT0 D0 D1 33 32 31 29 28 27 26 30 25 24 23 22 21 20 The CP2532/CP2528 is 12/8 channels capacitive touch panel controller, used for scroll, navigation and selection detection. The controller contains SPI or I2C serial interface, extendable GPIO, high PSRR LDO and in-built OSC. The touch status can be read via serial interface or GPIO. GPIO can be configured to open drain mode. Particularly, adjacent sensor suppression (ASS) function ensures only one channel active each time. The range of power is 2.6V ~ 5.5V.
