CLAA101FP05XG Datasheet - CHUNGHWA PICTURE TUBES

CLAA101FP05XG - TFT-LCD

1 VDD DC-DC circuit supply voltage (3V - 4.2V) 2 VDD DC-DC circuit supply voltage (3V - 4.2V) 3 NC Not Connection 4 LED_EN LED enable input 5 LED_PWM Backlight LED driver PWM 6 EDID_SDA EDID Data Input 7 EDID_SCL EDID Clock Input 8 NC Not Connection 9 GND Ground 10 DSI_D2P/Rx-IN

Chunghwa Picture Tubes, Ltd.

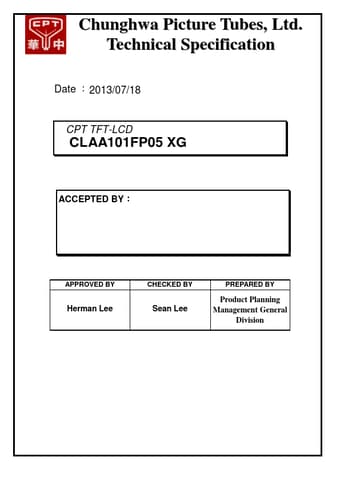

Technical Specification Date :2013/07/18 CPT TFT-LCD CLAA101FP05 XG ACCEPTED BY: APPROVED BY Herman Lee CHECKED BY Sean Lee PREPARED BY Product Planning Management General Division CPT 1.

OVERVIEW CHUNGHWA PICTURES TUBES, LTD., CLAA101FP05 is 10.1" color (16:10) TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of LCD panel, driver ICs, control circuit and backlight.

By applying 8 bit digital data, 1920×RGB (3) ×1200, 16.7M-color images are

CLAA101FP05XG-CHUNGHWAPICTURETUBES.pdf

Preview of CLAA101FP05XG PDF
CLAA101FP05XG Datasheet Preview Page 2 CLAA101FP05XG Datasheet Preview Page 3

Datasheet Details

Part number:

CLAA101FP05XG

Manufacturer:

CHUNGHWA PICTURE TUBES

File Size:

606.40 KB

Description:

Tft-lcd.
