CHB100-48S05, CHB100, 50 TO 100 WATT WIDE INPUT DC-DC CONVERTERS

V24 ︳CHB100 SERIES 50 TO 100 WATT WIDE INPUT DC-DC CONVERTERS SINGLE OUTPUT .

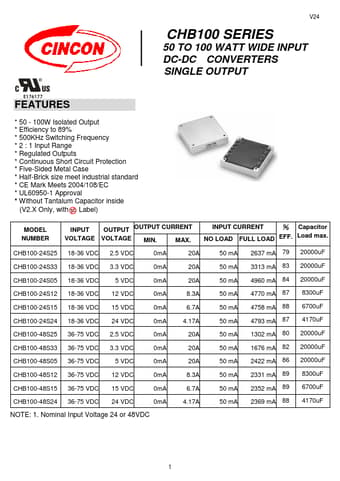

datasheet Preview Page 1 from Datasheet4u.com

CHB100-CINCON.pdf

CHB100-48S05 Datasheet Preview — This datasheet PDF includes multiple part numbers: CHB100-48S05, CHB100. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

CHB100-48S05, CHB100

Manufacturer:

CINCON

File Size:

81.61 KB

Description:

50 TO 100 WATT WIDE INPUT DC-DC CONVERTERS

Note:

This datasheet PDF includes multiple part numbers: CHB100-48S05, CHB100.
Please refer to the document for exact specifications by model.

Features

* 50 - 100W Isolated Output
* Efficiency to 89%
* 500KHz Switching Frequency
* 2 : 1 Input Range
* Regulated Outputs
* Continuous Short Circuit Protection
* Five-Sided Metal Case
* Half-Brick size meet industrial standard
* CE Mark Meets 2004/108/EC
* UL60950
