EC6A02

7.5WATT 2:1 INPUT RANGE DC-DC CONVERTERS

EC6A02 Features

* 7.5W Isolated Output

* 24-Pin DIP Package

* Efficiency to 87%

* 2:1 Input Range

* Regulated Outputs

* Pi Input Filter

* Continuous Short Circuit Protection

* CE Mark Meets 2004/108/EC

* UL60950-1 Approval

* Without Tantalum Capacitor inside EC6A SERIES 7.5W

EC6A02 Datasheet (121.88 KB)

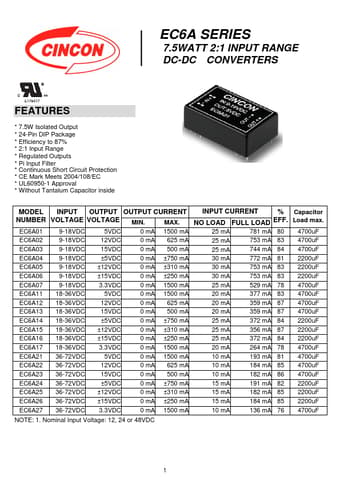

Preview of EC6A02 PDF

Datasheet Details

Part number:

EC6A02

Manufacturer:

CINCON

File Size:

121.88 KB

Description:

7.5watt 2:1 input range dc-dc converters.
