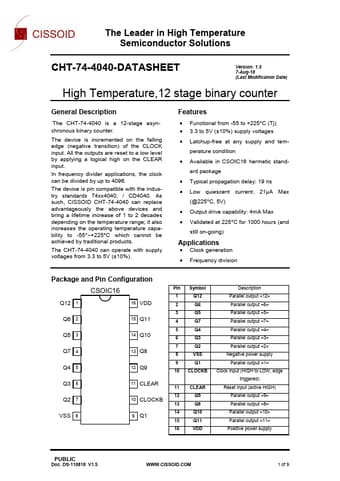

CHT-74-4040 Datasheet, counter equivalent, CISSOID

CHT-74-4040 Features

• Counter
• Functional from -55 to +225°C (Tj)
• 3.3 to 5V (±10%) supply voltages
• Latchup-free at any supply and tem- perature condition
• Available in CSOIC16 h

PDF File Details

Part number:

CHT-74-4040

Manufacturer:

CISSOID

File Size:

458.01kb

Download:

📄 Datasheet

Description:

12 stage binary counter. The CHT-74-4040 is a 12-stage asynchronous binary counter. The device is incremented on the falling edge (negative transition) of the

CHT-74-4040 Application

• Applications the clock can be divided by up to 4096. The device is pin compatible with the industry standards 74xx4040, / CD4040. As such, CISSOID
