2CL70B

Chip Silicon Rectifier

2CL70B Features

* Axial lead type devices for through hole design.

* For high resolution displays or TV receivers and working automation equipment.

* Diffused-junction.

* Suffix "G" indicates Halogen-free parts, ex. 2CL70ΒG.

* Εxcellent high temperation output characteristics

2CL70B Datasheet (44.56 KB)

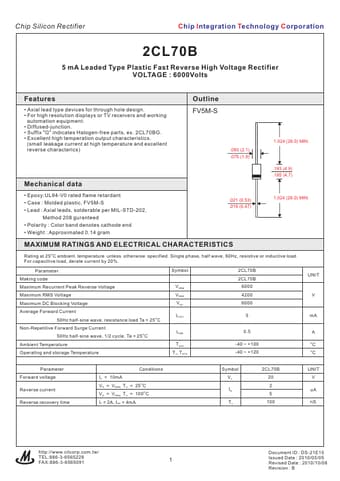

Preview of 2CL70B PDF

Datasheet Details

Part number:

2CL70B

Manufacturer:

CITC

File Size:

44.56 KB

Description:

Chip silicon rectifier.
Chip Silicon Rectifier Chip Integration Technology Corporation 2CL70B 5 mA Leaded Type Plastic Fast Reverse High Voltage Rectifier VOLTAGE : 6000Vol.
