2CL71B

Chip Silicon Rectifier

2CL71B Features

* Axial lead type devices for through hole design.

* For high resolution displays or TV receivers and working automation equipment.

* Diffused-junction.

* Suffix "G" indicates Halogen-free parts, ex. 2CL71ΒG.

* Εxcellent high temperation output characteristics

2CL71B Datasheet (44.65 KB)

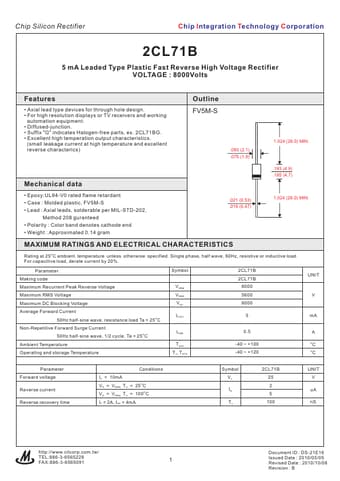

Preview of 2CL71B PDF

Datasheet Details

Part number:

2CL71B

Manufacturer:

CITC

File Size:

44.65 KB

Description:

Chip silicon rectifier.
Chip Silicon Rectifier Chip Integration Technology Corporation 2CL71B 5 mA Leaded Type Plastic Fast Reverse High Voltage Rectifier VOLTAGE : 8000Vol.
