3.0SMCJ54A, 3.0SMCJ5.0A, 3000W Surface Mount Transient Voltage Suppressors

SMD Transient Voltage Suppressor Chip Integration Technology Corporation 3.0SMCJ Series 3000W Surface Mount Transient Voltage Suppressors VOLTAGE : .

3.0SMCJ5.0A-CITC.pdf

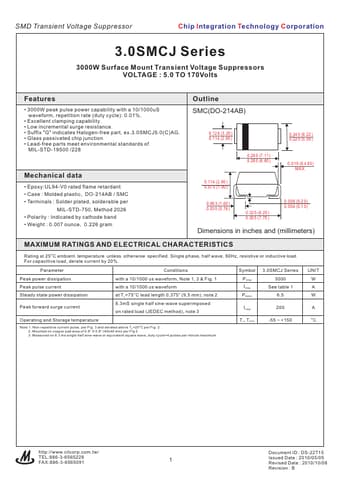

3.0SMCJ54A Datasheet Preview — This datasheet PDF includes multiple part numbers: 3.0SMCJ54A, 3.0SMCJ5.0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

3.0SMCJ54A, 3.0SMCJ5.0A

Manufacturer:

CITC

File Size:

78.85 KB

Description:

3000W Surface Mount Transient Voltage Suppressors

Note:

This datasheet PDF includes multiple part numbers: 3.0SMCJ54A, 3.0SMCJ5.0A.
Please refer to the document for exact specifications by model.

Features

* 3000W peak pulse power capability with a 10/1000uS waveform, repetition rate (duty cycle): 0.01%.
* Excellent clamping capability.
* Low incremental surge resistance.
* Suffix "G" indicates Halogen-free part, ex.3.0SMCJ5.0(C)AG.
* Glass passivated chip junct
