3.0SMCJ8.0CA - 3000W Surface Mount Transient Voltage Suppressors

Download the 3.0SMCJ8.0CA datasheet PDF. This datasheet also covers the 3.0SMCJ5.0A variant, as both devices belong to the same 3000w surface mount transient voltage suppressors family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (3.0SMCJ5.0A-CITC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 3.0SMCJ8.0CA
Manufacturer CITC
File Size 78.85 KB
Description 3000W Surface Mount Transient Voltage Suppressors
Datasheet download datasheet 3.0SMCJ8.0CA Datasheet

Overview

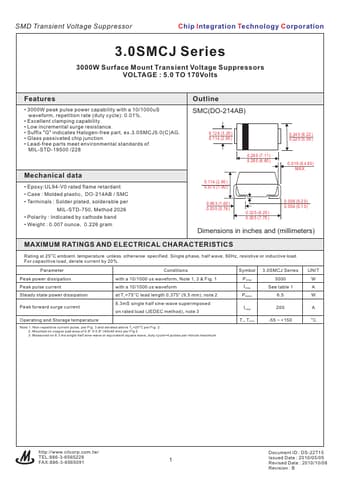

SMD Transient Voltage Suppressor Chip Integration Technology Corporation 3.0SMCJ Series 3000W Surface Mount Transient Voltage Suppressors VOLTAGE : 5.

Key Features

  • 3000W peak pulse power capability with a 10/1000uS waveform, repetition rate (duty cycle): 0.01%.
  • Excellent clamping capability.
  • Low incremental surge resistance.
  • Suffix "G" indicates Halogen-free part, ex.3.0SMCJ5.0(C)AG.
  • Glass passivated chip junction.
  • Lead-free parts meet environmental standards of MIL-STD-19500 /228 Mechanical data.
  • Epoxy:UL94-V0 rated flame retardant.
  • Case : Molded plastic, DO-214AB / SMC.
