CP20100S

Trench Schottky Rectifier

CP20100S Features

* Low forward voltage drop.

* Excellent high temperature stability.

* Fast switching capability.

* Suffix "G" indicates Halogen-free part, ex.CP20100SG.

* Lead-free parts meet environmental standards of MIL-STD-19500 /228

* Mechanical data

* Epoxy

CP20100S Datasheet (450.98 KB)

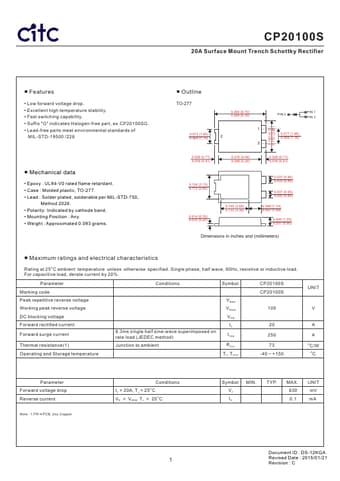

Preview of CP20100S PDF

Datasheet Details

Part number:

CP20100S

Manufacturer:

CITC

File Size:

450.98 KB

Description:

Trench schottky rectifier.
