CS88N08A8 - Silicon N-Channel Power MOSFET

CITC

The CS88N08A8 by CITC is a Silicon N-Channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

CS88N08A8 Silicon N-Channel Power MOSFET by CITC - Datasheet Preview — Official preview page of the CS88N08A8 Silicon N-Channel Power MOSFET datasheet (CITC).

Datasheet Details

Part number	CS88N08A8
Manufacturer	CITC
File Size	2.67 MB
Description	Silicon N-Channel Power MOSFET
Datasheet	CS88N08A8-CITC.pdf

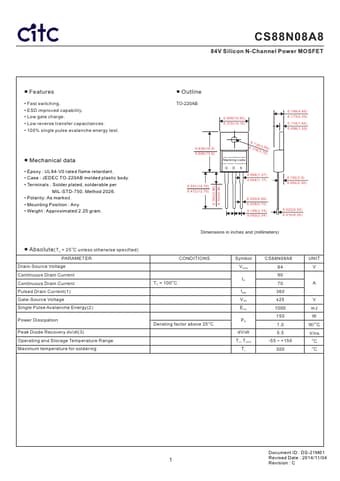

Additional preview pages of the CS88N08A8 datasheet.

CS88N08A8 Product details

Features

s.
Fast switching.
ESD improved capability.
Low gate charge.
Low reverse transfer capacitances.
100% single pulse avalanche energy test.
Mechanical data.
Epoxy : UL94-V0 rated flame retardant.
Case : JEDEC TO-220AB molded plastic body.
Terminals : Solder plated, solderable per MIL-STD-750, Method 2026.
Polarity: As marked.
Mounting Position : Any.
Weight : Approximated 2.25 gram.
