D3K304

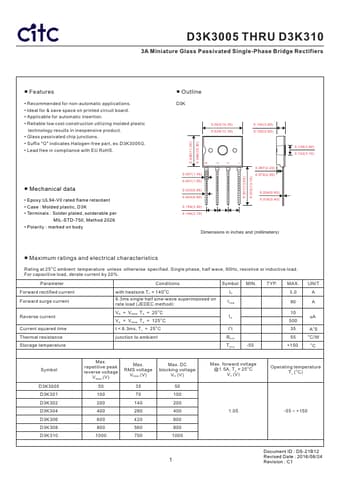

D3K304 is 3A Miniature Glass Passivated Single-Phase Bridge Rectifiers manufactured by Chip Integration Technology.
- Part of the D3K3005 comparator family.
- Part of the D3K3005 comparator family.
Features
- Remended for non-automatic applications.
- Ideal for & save space on printed circuit board.
- Applicable for automatic insertion.
- Reliable low cost construction utilizing molded plastic technology results in inexpensive product.
- Glass passivated chip junctions.
- Suffix "G" indicates Halogen-free part, ex.D3K3005G.
- Lead free in pliance with EU Ro HS.
- Mechanical data
- Epoxy:UL94-V0 rated flame retardant
- Case : Molded plastic, D3K
- Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
- Polarity : marked on body
- Outline
D3K
0.563(14.30) 0.524(13.30)
0.142(3.60) 0.102(2.60)
0.445(11.30) 0.406(10.30) 0.531(13.50) 0.516(13.10)
+
0.057(1.45) 0.041(1.05)
0.033(0.85) 0.024(0.60)
0.154(3.90) 0.146(3.70)
~~
- 0.087(2.20) 0.079(2.00)
0.024(0.60) 0.016(0.40)
0.134(3.40) 0.122(3.10)
Dimensions in inches and (millimeters)
- Maximum...
