ESDA3L18, ESDA3L03, 350W Surface Mount Transient Voltage Suppressor Array

Low Capacitance SMD TVS Array Chip Integration Technology Corporation ESDA3L03 SERIES 350W Surface Mount Transient Voltage Suppressor Array VOLTAGE .

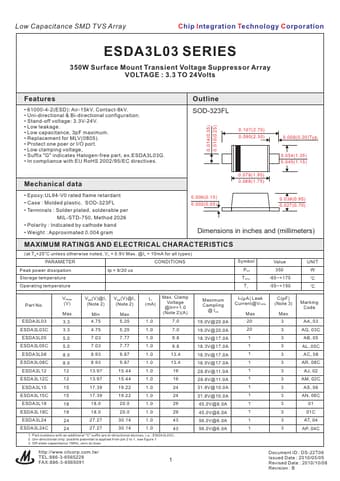

datasheet Preview Page 1 from Datasheet4u.com

ESDA3L03-CITC.pdf

ESDA3L18 Datasheet Preview — This datasheet PDF includes multiple part numbers: ESDA3L18, ESDA3L03. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ESDA3L18, ESDA3L03

Manufacturer:

CITC

File Size:

48.51 KB

Description:

350W Surface Mount Transient Voltage Suppressor Array

Note:

This datasheet PDF includes multiple part numbers: ESDA3L18, ESDA3L03.
Please refer to the document for exact specifications by model.

Features

* 61000-4-2(ESD): Air-15kV, Contact-8kV.
* Uni-directional & Bi-directional configuration.
* Stand-off voltage: 3.3V-24V.
* Low leakage.
* Low capacitance, 3pF maximum.
* Replacement for MLV(0805).
* Protect one poer or I/O port.
* Low
