FR208 - 2A Leaded Type Fast Rectifiers

This page provides the datasheet information for the FR208, a member of the FR2005 2A Leaded Type Fast Rectifiers family.

Features

  • s.
  • Axial lead type devices for through hole design.
  • High current capability.
  • Fast switching for high efficiency.
  • High surge current capability.
  • Glass passivated chip junction.
  • Suffix "G" indicates Halogen free parts, ex. FR2005G.
  • Lead-free parts meet environmental standards of MIL-STD-19500 /228.
  • Mechanical data.
  • Epoxy:UL94-V0 rated flame retardant.
  • Case : Molded plastic, DO-204AC / DO-15.
  • Lead :.

📥 Download Datasheet

Datasheet preview – FR208

Datasheet Details

Part number FR208
Manufacturer CITC
File Size 79.55 KB
Description 2A Leaded Type Fast Rectifiers
Datasheet download datasheet FR208 Datasheet
Additional preview pages of the FR208 datasheet.

📁 Similar Datasheet

  • FR20 - Fast Efficient Rectifiers (FCI Semiconductor)
  • FR201 - FAST SWITCHING PLASTIC RECTIFIER (YS)
  • FR201 - 2.0A Fast Recovery Silicon Rectifier (SEP ELECTRONIC)
  • FR201 - FAST RECOVERY RECTIFIERS (Suntan)
  • FR201 - FAST RECOVERY RECTIFIER (MIC)
  • FR201 - FAST RECOVERY RECTIFIERS (Sangdest Microelectronics)
  • FR201 - FAST RECOVERY RECTIFIER (Rectron)
  • FR201 - FAST RECOVERY RECTIFIER (Dc Components)
  • FR201 - FAST RECOVERY RECTIFIER DIODES (EIC discrete)
  • FR201 - 2.0 AMP FAST RECOVERY RECTIFIERS (Formosa MS)
Other Datasheets by CITC
  • FR2005 - 2A Leaded Type Fast Rectifiers
  • FR201 - 2A Leaded Type Fast Rectifiers
  • FR202 - 2A Leaded Type Fast Rectifiers
  • FR204 - 2A Leaded Type Fast Rectifiers
  • FR206 - 2A Leaded Type Fast Rectifiers
  • FR210 - 2A Leaded Type Fast Rectifiers

Full PDF Text Transcription

Click to expand full text

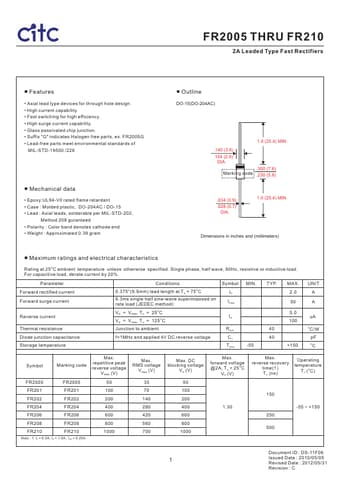

FR2005 THRU FR210 2A Leaded Type Fast Rectifiers ■ Features • Axial lead type devices for through hole design. • High current capability. • Fast switching for high efficiency. • High surge current capability. • Glass passivated chip junction. • Suffix "G" indicates Halogen free parts, ex. FR2005G • Lead-free parts meet environmental standards of MIL-STD-19500 /228 ■ Mechanical data • Epoxy:UL94-V0 rated flame retardant • Case : Molded plastic, DO-204AC / DO-15 • Lead : Axial leads, solderable per MIL-STD-202, Method 208 guranteed • Polarity : Color band denotes cathode end • Weight : Approximated 0.39 gram ■ Outline DO-15(DO-204AC) 1.0 (25.4) MIN. .140 (3.6) .104 (2.6) DIA. .300 (7.6) Marking code .230 (5.8) .034 (0.9) .028 (0.7) DIA. 1.0 (25.4) MIN.
