FS1J - 1A Surface Mount Fast Rectifiers

This page provides the datasheet information for the FS1J, a member of the FS1A 1A Surface Mount Fast Rectifiers family.

Features

  • s.
  • Low profile surface mounted.

📥 Download Datasheet

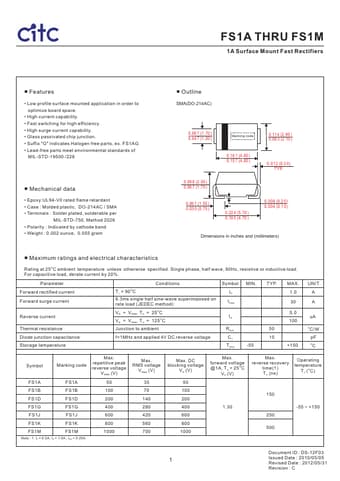

Datasheet preview – FS1J

Datasheet Details

Part number FS1J
Manufacturer CITC
File Size 81.68 KB
Description 1A Surface Mount Fast Rectifiers
Datasheet download datasheet FS1J Datasheet
Additional preview pages of the FS1J datasheet.

📁 Similar Datasheet

  • FS1J - SURFACE MOUNT SUPER FAST RECTIFIERS (LITE-ON)
  • FS1J - 1.0AMP. Surface Mount Fast Recovery Rectifiers (LGE)
  • FS1J - 1 Amp Fast Recovery Silicon Rectifier (MCC)
  • FS1J - 1.0 AMPS. FAST RECOVERY SILICON RECTIFIER (Jinan Gude Electronic Device)
  • FS1J - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • FS1000F - Hall-effect Current Sensor (Free Sor)
  • FS1000FL - 1.0A Super Fast Recovery Rectifier (YENYO)
  • FS1001-7R - 100 Watt DC-DC Converters (Power-One)
  • FS1001FL - 1.0A Super Fast Recovery Rectifier (YENYO)
  • FS1002 - High-performance low-power real-time clock (FREE SUN)
Other Datasheets by CITC
  • FS1JB - 1A Surface Mount Fast Rectifiers
  • FS1A - 1A Surface Mount Fast Rectifiers
  • FS1AB - 1A Surface Mount Fast Rectifiers
  • FS1B - 1A Surface Mount Fast Rectifiers
  • FS1BB - 1A Surface Mount Fast Rectifiers
  • FS1D - 1A Surface Mount Fast Rectifiers
  • FS1DB - 1A Surface Mount Fast Rectifiers
  • FS1G - 1A Surface Mount Fast Rectifiers

Full PDF Text Transcription

Click to expand full text
FS1A THRU FS1M 1A Surface Mount Fast Rectifiers ■ Features • Low profile surface mounted application in order to optimize board space. • High current capability. • Fast switching for high efficiency. • High surge current capability. • Glass passivated chip junction. • Suffix "G" indicates Halogen free parts, ex. FS1AG • Lead-free parts meet environmental standards of MIL-STD-19500 /228 ■ Mechanical data • Epoxy:UL94-V0 rated flame retardant • Case : Molded plastic, DO-214AC / SMA • Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 • Polarity : Indicated by cathode band • Weight : 0.002 ounce, 0.055 gram ■ Outline SMA(DO-214AC) 0.06 7 (1.70 ) 0.04 7 (1.20 ) Marking code 0.114 (2.90 ) 0.08 3 (2.10 ) 0.09 8 (2.50 ) 0.06 7 (1.70 ) 0.06 1 (1.55 ) 0.03 0 (0.75 ) 0.
