MBR20150 - 20A High Power Schottky Barrier Rectifiers

Product Overview

CITC

Part number	MBR20150
Manufacturer	CITC
File Size	150.52 KB
Description	20A High Power Schottky Barrier Rectifiers
Datasheet	MBR20150 Datasheet
Note	This datasheet PDF includes multiple part numbers: MBR20150, MBR2040. Please refer to the document for exact specifications by model.

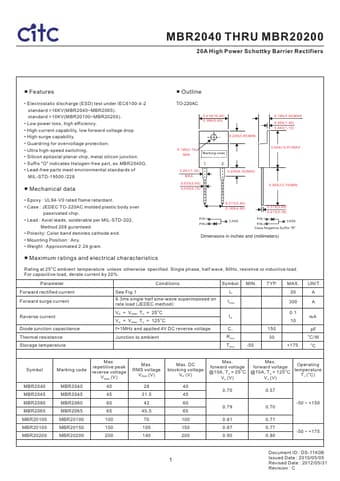

Additional preview pages of the MBR20150 datasheet.

s.
Outline.
Electrostatic discharge (ESD) test under IEC6100-4-2 standard >16ΚV(ΜΒR2040~ΜΒR2065). standard >10ΚV(ΜΒR20100~ΜΒR20200).
Low power loss, high efficiency.
High current capability, low forward voltage drop.
High surge capability.
Guardring for overvoltage protection.
Ultra high-speed switching.
Silicon epitaxial planar chip, metal silicon junction.
Suffix "G" indicates Halogen-free part, ex. MBR2040G.
