P4SMA480CA, P4SMA6.8A - 400W Surface Mount Transient Voltage Suppressors

Name: P4SMA480CA
SKU: P4SMA480CA-1254965

CITC

The P4SMA480CA by CITC is a 400W Surface Mount Transient Voltage Suppressors. Below is the official datasheet preview.

Datasheet Details

Part number	P4SMA480CA, P4SMA6.8A
Manufacturer	CITC
File Size	78.50 KB
Description	400W Surface Mount Transient Voltage Suppressors
Datasheet	P4SMA6.8A-CITC.pdf
Note	This datasheet PDF includes multiple part numbers: P4SMA480CA, P4SMA6.8A. Please refer to the document for exact specifications by model.

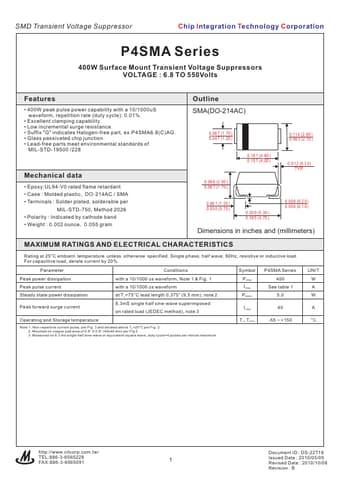

Additional preview pages of the P4SMA480CA datasheet.

400W peak pulse power capability with a 10/1000uS waveform, repetition rate (duty cycle): 0.01%.
Excellent clamping capability.
Low incremental surge resistance.
Suffix "G" indicates Halogen-free part, ex. P4SMA6.8(C)AG.
Glass passivated chip junction.
Lead-free parts meet environmental standards of MIL-STD-19500 /228 Mechanical data.
Epoxy:UL94-V0 rated flame retardant.
Case : Molded plastic, DO-214AC / SMA.
Te.
