SR110, SR12 - 1A Leaded Type Schottky Barrier Rectifiers

CITC

📥 Download Datasheet

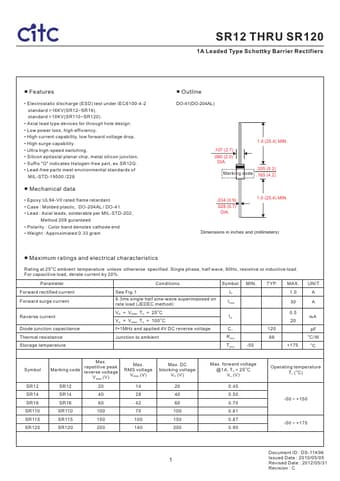

SR110 Datasheet Preview — This datasheet PDF includes multiple part numbers: SR110, SR12. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SR110, SR12
Manufacturer	CITC
File Size	136.67 KB
Description	1A Leaded Type Schottky Barrier Rectifiers
Datasheet	SR12-CITC.pdf
Note	This datasheet PDF includes multiple part numbers: SR110, SR12. Please refer to the document for exact specifications by model.

SR110 Product details

Features

s.
Electrostatic discharge (ESD) test under IEC6100-4-2 standard >16ΚV(SR12~SR16). standard >10ΚV(SR110~SR120).
Axial lead type devices for through hole design.
Low power loss, high efficiency.
High current capability, low forward voltage drop.
High surge capability.
Ultra high-speed switching.
Silicon epitaxial planar chip, metal silicon junction.
Suffix "G" indicates Halogen-free part, ex. SR12G.
Lead-free.
