| Part number | FAB51, FAB11 |
|---|---|
| Manufacturer | CKD |
| File Size | 571.50 KB |
| Description | Discrete direct acting 2 port solenoid valve |
| Datasheet |

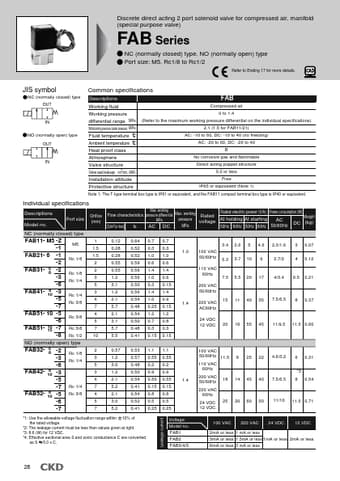

 FAB11-CKD.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: FAB51, FAB11. Please refer to the document for exact specifications by model. |
FAB Working fluid Compressed air Working pressure 0 to 1.4 differential range MPa (Refer to the maximum working pressure differential on the individual specifications) Withstanding pressure (water pressure) MPa 2.1 (1.5 for FAB11/21) Fluid temperature AC: -10 to 60, DC: -10 to 40 (no freezing) Ambient temperature AC: -20 to 60, DC: -20 to 40 Heat proof class B Atmosphere No corrosive gas and flammable Valve structure Valve seat leakage cm3/min.(ANR) Direct acting poppet struc
