MX315A Datasheet - CML

CTCSS Encoder

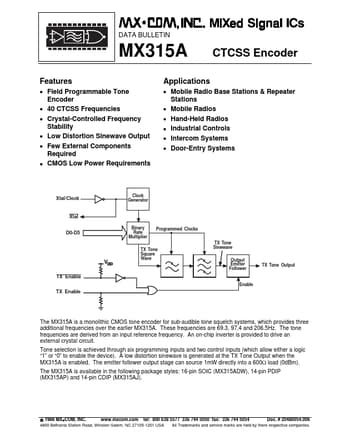

MX315A Features

* Field Programmable Tone Encoder 40 CTCSS Frequencies Crystal-Controlled Frequency Stability Low Distortion Sinewave Output Few External Components Required CMOS Low Power Requirements CTCSS Encoder Applications Mobile Radio Base Stations & Repeater Stations Mobile Radios Hand-Hel

MX315A General Description

9 9 Xtal Output output 10 10 11 12 Internal Connection N/C N/C TX Tone Output 11 13 12 13 14 14 15 16 TX Enable Input TX Enable Input VDD input input power 1998 MX COM, INC. www.mxcom.com tel: 800 638 5577 336 744 5050 fax: 336 744 5054 Doc. # 20480054.006 4800 Bethania Station R.

MX315A Datasheet (174.99 KB)

MX315A Datasheet Preview — Preview of MX315A PDF

Datasheet Details

Part number:

MX315A

Manufacturer:

CML

File Size:

174.99 KB

Description:

Ctcss encoder.
