M206-A4C Datasheet - CMOS Sensor

M206-A4C Contact Image Sensor Module

The M206-A4C contact image sensor (CIS) module is a contact type image sensing module that is composed of a line of LED’s as a light source, a long Selfoc rod lens array, and 5160 photo-detector array. Input and output electronic contact is via a 12-pin connector. The cross sectional view of the M.

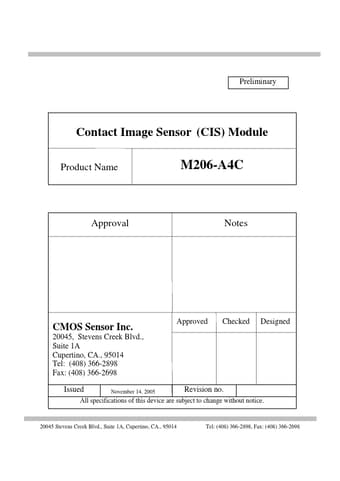

Preliminary Contact Image Sensor (CIS) Module Product Name M206-A4C Approval Notes CMOS Sensor Inc. 20045, Stevens Creek Blvd., Suite 1A Cupertino, CA., 95014 Tel: (408) 366-2898 Fax: (408) 366-2698 Approved Checked Designed Issued November 14, 2005 Revision no. All specifications of this device are subject to change without notice. 20045 Stevens Creek Blvd., Suite 1A, Cupertino, CA., 95014 Tel: (408) 366-2898, Fax: (408) 366-2698 Revision control sheet Revision No. Date Item of .

M206-A4C Features

* 5184 x 1 image sensing elements

* 600 dots per inch (dpi) resolution

* 218.25 mm scanning length

* 18 mm x 11.3 mm x 231 mm compact size

* No residual image

* Red, Green, Blue LED light source

* light weight

* single 5 V power supply

M206-A4C Datasheet (152.05 KB)

M206-A4C Datasheet Preview — Preview of M206-A4C PDF

Datasheet Details

Part number:

M206-A4C

Manufacturer:

CMOS Sensor

File Size:

152.05 KB

Description:

Contact image sensor module.
