CSCF2918 Datasheet - CODACA

CSCF2918 High Current Power Inductor

High Current Power Inductor - CSCF2918 Series Outline: Assemblage design, sturdy structure. High inductance, high current, low magnetic loss, low ESR, small parasitic capacitance. Flat wire winding, achieve a low D.C. Resistance. Temperature rise current and saturation current is less influenced by environment. Operating temperature : -40 +125 (Including coil’s temperature rise) -40 +125 1 Appearance and dimensions (mm) 27.9 Max 17.8 Max 27.9 Max Code 19.7 Max Marking 3 2.5 0.5 .

CSCF2918-CODACA.pdf

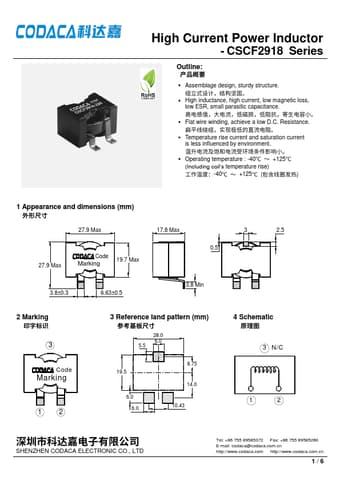

Preview of CSCF2918 PDF
CSCF2918 Datasheet Preview Page 2 CSCF2918 Datasheet Preview Page 3

Datasheet Details

Part number:

CSCF2918

Manufacturer:

CODACA

File Size:

1.23 MB

Description:

High current power inductor.
