SPQ105 SMD Power Inductor

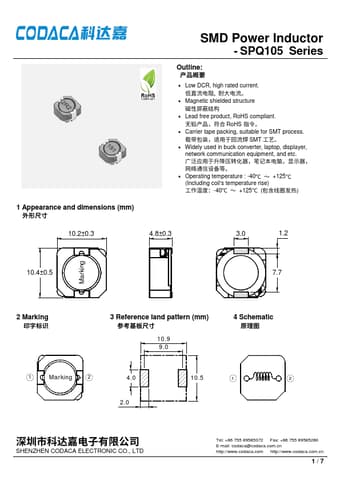

1 Appearance and dimensions (mm) SMD Power Inductor - SPQ105 Series Outline: Low DCR, high rated current. Magnetic shielded structure Lead free product, RoHS compliant. RoHS Carrier tape packing, suitable for SMT process. SMT Widely used in buck converter, laptop, displayer, network communication equipment, and etc. Operating temperature : -40 +125 (Including coil’s temperature rise) -40 +125 ( ) 10.2±0.3 4.8±0.3 3.0 1.2 10.4±0.5 7.7 Marking 2 Marking 3 Reference land pattern (mm.
