1627N5M21-113-12.0 - PRECISION GEARMOTOR

📥 Download Datasheet

Datasheet preview – 1627N5M21-113-12.0

Datasheet Details

Part number 1627N5M21-113-12.0
Manufacturer CONSTAR
File Size 236.66 KB
Description PRECISION GEARMOTOR
Datasheet download datasheet 1627N5M21-113-12.0 Datasheet
Additional preview pages of the 1627N5M21-113-12.0 datasheet.

📁 Similar Datasheet

  • 1620B - LED BACKLIGHT FOR LCD DISPLAY (Micro Electronics)
  • 1620G - LED BACKLIGHT FOR LCD DISPLAY (Micro Electronics)
  • 16215 - 16 Character by 2 Line Alphanumeric LCD Assembly (ETC)
  • 1622 - CWDM DFB Laser Module (EMCORE)
  • 1623G - LED BACKLIGHT FOR LCD DISPLAY (Micro Electronics)
  • 1623R - LED BACKLIGHT FOR LCD DISPLAY (Micro Electronics)
  • 1623RO - LED BACKLIGHT FOR LCD DISPLAY (Micro Electronics)
  • 1623Y - LED BACKLIGHT FOR LCD DISPLAY (Micro Electronics)
  • 16244 - 16 Character by 2 Line Alphanumeric LCD Assembly (ETC)
  • 162B2NN - Rocker Switches (Switchcraft)
Other Datasheets by CONSTAR

Full PDF Text Transcription

Click to expand full text

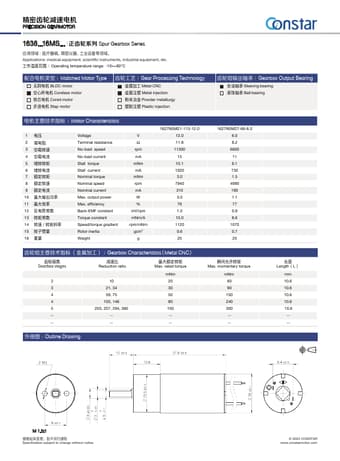

PRECISION GEARMOTOR 1638...16MS... Spur Gearbox Series : 、、。 Applications: medical equipment, scientific instruments, industrial equipment, etc. | Operating temperature range: -10~+80°C | Matched Motor Type BLDC motor Coreless motor Cored motor Step motor | Gear Processing Technology Metal CNC Metal injection Powder metallurgy Plastic injection | Gearbox Output Bearing Sleeving bearing Ball bearing | Motor Characteristics 1627N5M21-113-12.0 1627N5M27-66-6.0 - 1 Voltage V 12.0 6.0 - 2 Terminal resistance Ω 11.8 8.2 - 3 No-load speed rpm 11300 6600 - 4 No-load current mA 13 11 - 5 Stall torque mNm 10.1 6.1 - 6 Stall current mA 1020 730 - 7 Nominal torque mNm 3.0 1.
